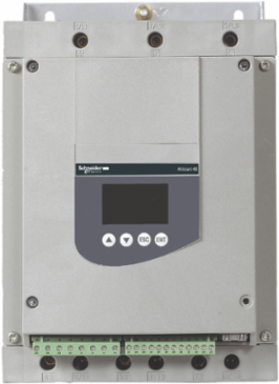

Schneider Electric ATS48D17Y soft starter for asynchronous motor, Altistart 48, 14A, 208 to 690V, 4 to 15kW
Schneider Electric ATS48D17Y soft starter for asynchronous motor, Altistart 48, 14A, 208 to 690V, 4 to 15kW
- MPN: ATS48D17Y
- PPN: SCH-ATS48D17Y
- UNSPSC: 39121521
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$1387.11/ EA
Description
soft starter for asynchronous motor, Altistart 48, 14A, 208 to 690V, 4 to 15kW
Features
- Thermal protection of the motor
- Factory set for immediate startup
- Reduce machine operating costs
- Bypass contactor prevents heat dissipation
- Dual configuration
- Numerous configurable inputs/outputs
- Easy integration in enclosures and control systems
- Reliable, robust and high performance
- Cascaded starting and deceleration of a number of motors
Specifications
Communications & Management Attributes
- Communication Port Protocol
- Modbus
Communication Data Linkserial
Conformance Attributes
- Product Certifications
- TCF, DNV, CSA, UL, CCC, C-tick, GOST, SEPRO, NOM 117
StandardsIEC 60947-4-2
Complementary Attributes
- Maximum Horse Power Rating
- 10 hp 460 V for standard applications, 10 hp 575 V for severe applications, 15 hp 575 V for standard applications, 2 hp 208 V for severe applications, 3 hp 208 V for standard applications, 3 hp 230 V for severe applications, 5 hp 230 V for standard applications, 7.5 hp 460 V for severe applications
Minimum Switching Current10 mA 6 V DC relay outputs
Important Information Attributes
- Electromagnetic Compatibility
- conducted and radiated emissions level A conforming to IEC 60947-4-2, conducted and radiated emissions level B conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
- Power Dissipation In W
- 46 W for standard applications, 59 W for standard applications
- Protection Type
- phase failure line, thermal protection motor, thermal protection starter
- Icl Starter Rating
- 17 A connection in the motor supply line for severe applications, 17 A connection in the motor supply line for standard applications
- Ue Rated Operational Voltage5
- 660 V 11 kW for standard applications, 690 V 11 kW for severe applications, 690 V 15 kW for standard applications, 230 V 3 kW for severe applications, 230 V 4 kW for standard applications, 500 V 9 kW for standard applications, 525 V 9 kW for standard applications, 660 V 9 kW for severe applications, 400 V 7.5 kW for standard applications, 440 V 7.5 kW for standard applications, 500 V 7.5 kW for severe applications, 525 V 7.5 kW for severe applications, 400 V 5.5 kW for severe applications, 440 V 5.5 kW for severe applications, 460 V 10 hp for standard applications, 575 V 10 hp for severe applications, 575 V 15 hp for standard applications, 208 V 2 hp for severe applications, 208 V 3 hp for standard applications, 230 V 3 hp for severe applications, 230 V 5 hp for standard applications, 460 V 7.5 hp for severe applications
- Local Publishable Date
- 2025-07-09
- Device Type
- Soft starter - Soft starter
- Traceability
- Yes
- Average Life Duration
- 10 year(s)
- Legacy WEEE Scope
- In
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Return Indicator
- N
- Connector Type
- 1 RJ45
- Function Available
- external bypass (optional)
- Motor Starter Type
- soft starter
- Operating Position
- vertical +/- 10 degree
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- soft starter
- Range Of Product
- Altistart 48
- Supply Frequency
- 50...60 Hz - 5...5 %
- Transmission Rate
- 4800, 9600 or 19200 bps
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Medium Desc
- soft starter for asynchronous motor, Altistart 48, 14A, 208 to 690V, 4 to 15kW
- Product Kit Identifier
- N
- Supply Inrush Current
- 0.4...1.3 Icl adjustable
- Global Commercial Status
- Post commercialisation
Motor Power KW9 kW 660 V for severe applications, 7.5 kW 500 V for severe applications, 7.5 kW 525 V for severe applications, 5.5 kW 440 V for severe applications, 11 kW 660 V for standard applications, 11 kW 690 V for severe applications, 15 kW 690 V for standard applications, 3 kW 230 V for severe applications, 4 kW 230 V for standard applications, 9 kW 500 V for standard applications, 9 kW 525 V for standard applications, 7.5 kW 400 V for standard applications, 7.5 kW 440 V for standard applications, 5.5 kW 400 V for severe applications
Power Range2.2-3 kW 200-240 V 3 phase, 4-6 kW 200-240 V 3 phase, 7-11 kW 480-500 V 3 phase
Ue Rated Operational Voltage2660 V 11 kW for standard applications, 690 V 11 kW for severe applications, 690 V 15 kW for standard applications, 230 V 3 kW for severe applications, 230 V 4 kW for standard applications, 500 V 9 kW for standard applications, 525 V 9 kW for standard applications, 400 V 7.5 kW for standard applications, 440 V 7.5 kW for standard applications, 400 V 5.5 kW for severe applications, 460 V 10 hp for standard applications, 575 V 10 hp for severe applications, 575 V 15 hp for standard applications, 208 V 2 hp for severe applications, 208 V 3 hp for standard applications, 230 V 5 hp for standard applications, 460 V 7.5 hp for severe applications
Output Absolute Accuracy Precision+/- 5 %, +/- 5 %
Local Data StatusPublishable
ManufacturerSchneider Electric
ServiceabilityNo
Field Service DivisionIDIBS
Service Catalog ItemFinished good
Scope PerimeterAt least in Europe
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Product Contributes To Saved And Avoided EmissionsNo
Assembly Stylewith heat sink
Device Short NameATS48
MarkingCE
Network Frequency47.5...63 Hz
Package Weight Lbs6.05 kg
Product Destinationasynchronous motors
Product Specific Applicationheavy duty industry and pumps
ReturnabilityNo
Sustainable PackagingNo
Utilisation CategoryAC-53A
Us Rated Supply Voltage2208...690 V - 15...10 %
Stocking FlagY
Device Connectionin the motor supply line
Type Of Startstart with torque control (current limited to 5 In)
Us Rated Supply Voltage5208...690 V - 15...10 %
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating of 2 % per °C), -10-40 °C (without derating), -10-40 °C (without derating)
- Operating Altitude
- <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m, <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...6561.68 ft (> 1000...2000 m) with current derating of 2.2 % per additional 100 m
- China ROHS Regulation
- X
- Ambient Air Temperature For Storage
- -25-70 °C
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
ROHS Exemption InformationYes
Mercury FreeYes
Relative Humidity0-95 % without condensation or dripping water IEC 60068-2-3
General Attributes
- Product Or Component Type
- soft starter
Range Of ProductAltistart 48
Output Attributes
- Discrete Output Type
- LO1) logic output 0 V common configurable, LO2) logic output 0 V common configurable, R1) relay outputs fault relay NO, R2) relay outputs end of starting relay NO, R3) relay outputs motor powered NO
- Discrete Output Number
- 2
Analogue Output Typecurrent output AO 0-20 mA or 4-20 mA 500 Ohm
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Discrete Input Type
- PTC, 750 Ohm 25 °C, Stop, Run, LI3, LI4) logic, <= 8 mA 4300 Ohm
- Discrete Input Number
- 5
Discrete Input Logicpositive logic Stop, Run, LI3, LI4 11 V, >= 5 mA
Discrete Input Voltage24 V <= 30 V
Specifications
- Country of Origin
- United States
Depth190 mm
