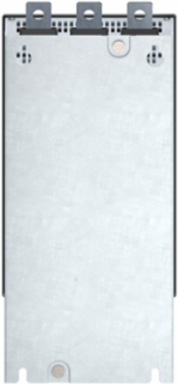

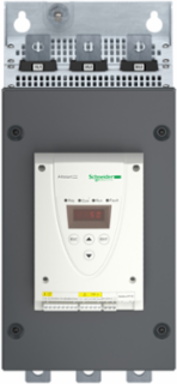

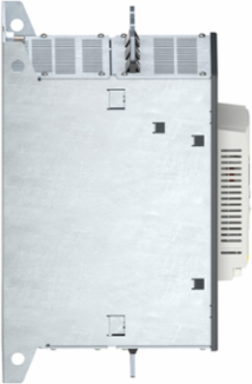

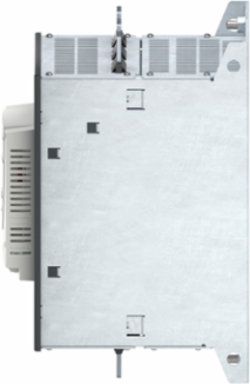

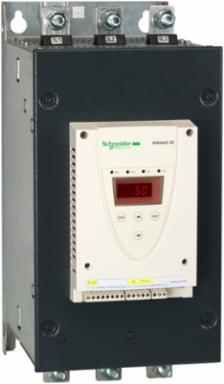

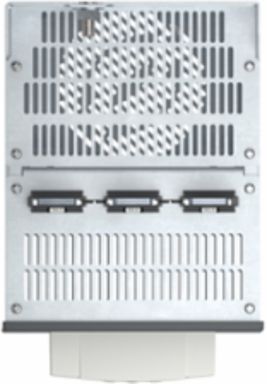

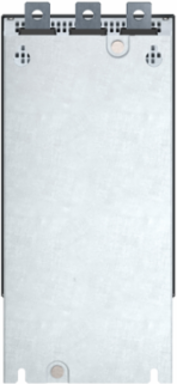

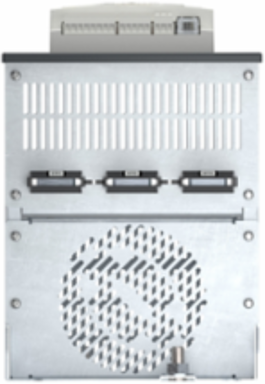

Schneider Electric ATS22C32S6U Altistart 22 Soft Starter, 100-300hp, 320A, 110V-575V AC

  • MPN: ATS22C32S6U
  • PPN: SCH-ATS22C32S6U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 320A, a rated power from 100HP to300HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, Singapore, United States
    Depth299 mm

    Communications & Management Attributes

    Communication Data Link
    serial
    Communication Port ProtocolModbus

    Complementary Attributes

    Maximum Horse Power Rating
    100 hp 208 V, 125 hp 230 V, 250 hp 460 V, 300 hp 575 V
    Control Circuit Consumption
    20 W
    Maximum Switching Current5 A 250 V AC resistive 1 relay outputs, 5 A 30 V DC resistive 1 relay outputs, 2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
    Minimum Switching Current100 mA 12 V DC relay outputs)

    Important Information Attributes

    Persona Type Ids
    EU, LC, PB
    Electromagnetic Compatibility
    conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12, electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4, immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3, voltage/current impulse level 3 conforming to IEC 61000-4-5
    Vibration Resistance
    1 gn (f= 13-200 Hz) conforming to IEC 60068-2-6, 1.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    1
    Serviceability
    Yes
    Field Service Division
    IDIBS
    Weee Applicability
    Finished product
    Weee Product Category
    5
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    No
    Tier Id
    1
    Function Option Id
    STANDARD
    Market Segmentation Id
    INDUSTRIAL
    Product Kit Identifier
    N
    Component Name
    ATS22
    Control Circuit Consumption
    20 W
    Factory Setting Current
    302 A
    Icl Starter Rating
    320 A connection in the motor supply line for standard applications
    Marking
    CE
    Noise Level
    56 dB
    Phase
    3 phase
    Product Availability
    Stock - Normally stocked in distribution facility
    Product Or Component Type
    soft starter
    Range Of Product
    Altistart 22
    Shock Resistance
    15 gn 11 ms IEC 60068-2-27
    Supply Voltage Limits
    177-660 V
    Transmission Rate
    4800, 9600 or 19200 bps
    Type Of Start
    start with torque control (current limited to 3.5 In)
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    206 mm
    [Us] Rated Supply Voltage
    208...600 V - 15...10 %
    Package Weight(Lbs)
    24.500 kg
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Panel Builder
    Protection Typephase failure line, thermal protection motor, thermal protection starter
    Certificate AgencyCSA, C-tick, CCC, UL, GOST
    Local Publishable Date2026-03-25
    Stocking FlagY
    Device TypeSoft starter - Soft starter
    TraceabilityYes
    Average Life Duration10 year(s)
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1923
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Assembly Stylewith heat sink
    Connector Type1 RJ45
    Device Connectionin the motor supply line
    Function Availableinternal bypass
    Installed Device31
    Network Frequency45...66 Hz
    Operating Positionvertical +/- 10 degree
    Power Dissipation In W150 W for standard applications
    Product Destinationasynchronous motors
    Product Specific Applicationpumps and fans
    ReturnabilityYes
    Supply Frequency50...60 Hz - 10...10 %
    Sustainable PackagingNo
    Type Of Coolingforced convection
    Utilisation CategoryAC-53A
    Height Nominal425 mm
    [Uc] Control Circuit Voltage110 V - 15...10 % 50/60 Hz
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating), 40-60 °C (with current derating 2.2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP00
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-95 % without condensation or dripping water IEC 60068-2-3
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart 22
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Type
    relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
    Output Current
    0.4...1 Icl adjustable
    Discrete Output Number2

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive logic LI1, LI2, LI3 79 V, <= 2 mA
    Discrete Input Type
    LI1, LI2, LI3) logic, 5 mA 20 kOhm
    Ptc Probe Input
    750 Ohm
    Discrete Input Number3
    Discrete Input Voltage110 V <= 121 V

    Accessories

    Loading carousel layout...

    Accessories

    Loading carousel layout...

    Similar Products

    Loading carousel layout...
