Schneider Electric ATS22D17S6U Altistart 22 Soft Starter, 3-15hp, 110V Control, 208-575V

MPN: ATS22D17S6U
PPN: SCH-ATS22D17S6U

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$1215.23

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

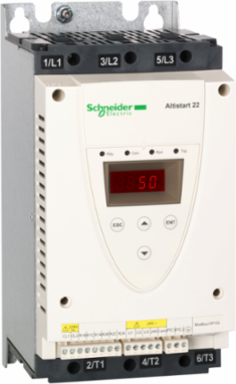

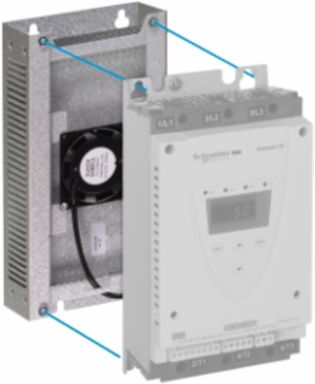

This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 17A, a rated power from 3HP to 15HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

Features

This versatile Altistart 22 soft starter seamlessly handles operating voltages from 208V up to 575V AC, allowing you to deploy a single part number across multiple industrial applications. It efficiently controls standard 3-phase asynchronous motors rated for 3 hp at 208V, 5 hp at 230V, 10 hp at 460V, and up to 15 hp at 575V, giving you the flexibility to manage variable local line voltages without buying different starter models.
Featuring a built-in internal bypass contactor, this module automatically shunts current away from the internal thyristors once your motor reaches steady-state running speed. By dropping power dissipation down to a mere 39 watts for standard applications, it drastically cuts thermal output inside your electrical enclosure, eliminating the need for expensive auxiliary cooling fans or oversized control cabinets.
This soft starter delivers integrated Class 10 electronic thermal overload tracking, phase-failure line monitoring, and internal starter protection out of the box, mitigating the risk of expensive motor burnout. These comprehensive parameters actively minimize unneeded panel footprint and wiring complexity by replacing independent external phase-monitoring relays and thermal overloads.
Designed with a space-saving, slim profile measuring only 5.1 inches wide and 10.4 inches high, this vertical-mount module maximizes precious DIN rail or backpanel real estate. Accommodating standard 12 AWG to 4 AWG field wiring via robust screw clamp connections, the chassis integrates cleanly into space-constrained motor control centers (MCCs) or standalone control panels.
Operating on a standard 110V AC control circuit voltage (50/60Hz), this unit matches typical North American plant control environments effortlessly. It includes dual configurable relay outputs for running, alarm, and trip signaling, as well as native Modbus serial communication via an RJ45 port, ensuring easy automation scripting and remote telemetry integration with your existing PLC networks.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Indonesia, United States

Depth	169 mm

Communications & Management Attributes

Communication Data Link	serial

Communication Port Protocol	Modbus

Complementary Attributes

Maximum Switching Current	5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
Maximum Horse Power Rating	10 hp 460 V15 hp 575 V3 hp 208 V5 hp 230 V

Control Circuit Consumption	20 W
Minimum Switching Current	100 mA 12 V DC relay outputs)

Important Information Attributes

Persona Type Ids	EU, LC, PB
Electromagnetic Compatibility	conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
Certificate Agency	UL, GOST, CCC, CSA, C-tick
Local Publishable Date	2026-03-25
Stocking Flag	N
Device Type	Soft starter - Soft starter
Traceability	Yes
Average Life Duration	10 year(s)
Weee Scope	In
Scope Perimeter	At least in Europe
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1923
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Market Segmentation	Industrial
Assembly Style	with heat sink
Connector Type	1 RJ45
Device Connection	in the motor supply line
Function Available	internal bypass
Installed Device	31
Network Frequency	45...66 Hz
Operating Position	vertical +/- 10 degree
Power Dissipation In W	39 W for standard applications
Product Destination	asynchronous motors
Product Specific Application	pumps and fans
Returnability	Yes
Supply Frequency	50...60 Hz - 10...10 %
Sustainable Packaging	No
Type Of Cooling	forced convection
Utilisation Category	AC-53A
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal	130 mm
[Us] Rated Supply Voltage	208...600 V - 15...10 %
Package Weight(Lbs)	8.2 kg
Warranty (In Months)	18

Persona Type Names	End User, Contractor, Panel Builder
Protection Type	phase failure linethermal protection motor, thermal protection starter
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	No
Field Service Division	IDIBS
Weee Applicability	Finished product
Weee Product Category	5
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Component Name	ATS22
Control Circuit Consumption	20 W
Factory Setting Current	14 A
Icl Starter Rating	17 A connection in the motor supply line for standard applications
Marking	CE
Noise Level	45 dB
Phase	3 phase
Product Availability	Stock - Normally stocked in distribution facility
Product Or Component Type	soft starter
Range Of Product	Altistart 22
Shock Resistance	15 gn 11 ms IEC 60068-2-27
Supply Voltage Limits	177-660 V
Transmission Rate	4800, 9600 or 19200 bps
Type Of Start	start with torque control (current limited to 3.5 In)
Vibration Resistance	1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
Height Nominal	265 mm
[Uc] Control Circuit Voltage	110 V - 15...10 % 50/60 Hz
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8537109170

Environment Attributes Main

Ambient Air Temperature For Operation	-10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C)
Operating Altitude	<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	No
Relative Humidity	0-95 % without condensation or dripping water IEC 60068-2-3

Ambient Air Temperature For Storage	-25-70 °C, -25-70 °C
Take Back	No
China Rohs Regulation	X
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold

General Attributes

Phase	3 phase
Range Of Product	Altistart 22

Product Or Component Type	soft starter

ETIM

ETIM 8	EC000640

ETIM 9	EC000640

Output Attributes

Discrete Output Type	relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
Output Current	0.4...1 Icl adjustable
