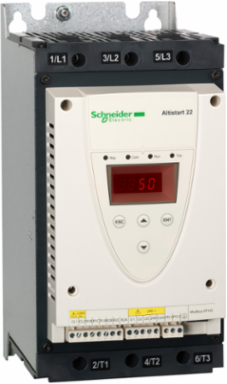

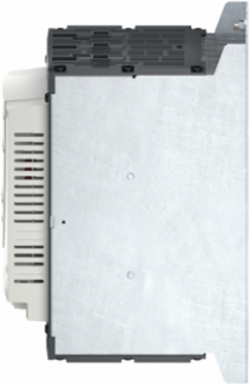

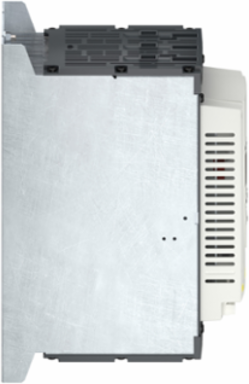

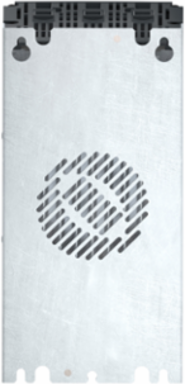

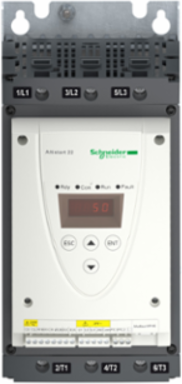

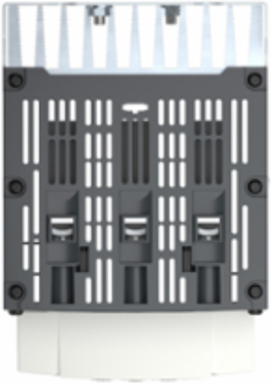

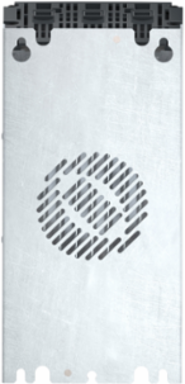

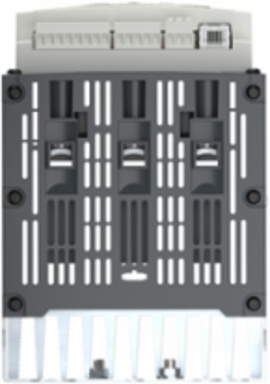

Schneider Electric ATS22D75S6U Altistart 22 Soft Starter, 20-60 hp, 110V, 208-575V, 75A

  • MPN: ATS22D75S6U
  • PPN: SCH-ATS22D75S6U
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $2223.23

    / EA

    Available to Order

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altistart 22 soft starter can feed 3-phase asynchronous motors in supply line connection. It has a rating of 75A, a rated power from 20HP to 60HP and a rated voltage from 230V to 575V AC. It is designed for simple and complex machines such as centrifugal and piston pumps, fans, screw compressors and material handling equipment. Slim form factor improves versatility; allows mounting in frames of any kind of machines. It features an Integrated bypass, this reduces noise and decreases heat dissipation. Compatibility with SoMove software allows configurations and settings to be easily transferred, meaning spares can be quickly installed. It provides smooth starting for your machinery, avoiding mechanical stresses and extending their service life.

    Features

    • Engineered to accommodate wide line supply fluctuations, this unit operates flawlessly between 208V and 600V AC (with the supply voltage limits spanning 177V to 660V). This wide adaptability makes it an ideal fit for standard North American industrial networks, allowing you to standardize a single model across multiple utility infrastructures.
    • This multi-rated controller delivers up to 75A of output current, capable of driving three-phase asynchronous motors across standard industrial power thresholds. It efficiently handles loads of 20 HP at 208V, 25 HP at 230V, 50 HP at 460V, and up to 60 HP at 575V, providing precise torque control that eliminates mechanical jarring on heavy-duty startups.
    • Equipped with an internal bypass contactor, the unit automatically switches over to a mechanical connection once the motor reaches full running speed, eliminating standard solid-state heat generation. This engineering choice drops continuous power dissipation down to just 63W, significantly reducing thermal loads inside your electrical panel, cutting down cabinet cooling costs, and extending the service life of internal electronics.
    • Utilizing a three-phase controlled voltage ramp with proprietary torque control algorithms, this starter dampens mechanical shock by limiting inrush current to 3.5 times nominal levels. This smooth acceleration and controlled deceleration curve effectively prevents sudden torque spikes, eliminating costly pipe-shattering water hammer in fluid pumping networks and belt slippage in material handling systems.
    • Featuring class 10 electronic thermal overload protection, this solid-state controller continuously monitors line health to guard against phase failure, motor overheating, and starter over-temperature events. The real-time diagnostic intelligence prevents catastrophic motor burnouts, keeping your critical infrastructure safe while saving valuable backpanel real estate by erasing the need for external monitoring relays.
    • Designed with a compact footprint measuring 145 mm wide, 295 mm high, and 207 mm deep, this wall-mountable unit maximizes density inside custom control enclosures and machine frames. Seamless compatibility with SoMove setup software allows plant engineers to commission, clone, and transfer parameters instantly, dramatically accelerating deployment times and minimizing downtime during field replacements.
    • Outfitted with an RJ45 physical interface supporting native Modbus serial communication, this device transmits critical running status, alarms, and trip data directly to your central control room. It effortlessly hooks into your existing automation networks, providing maintenance crews with the remote visibility required for predictive monitoring and rapid system troubleshooting.
    • Fully certified under UL, CSA, CCC, and C-Tick standards, this IP20-rated soft starter meets strict international safety and electromagnetic compatibility regulations. These rigorous certifications ensure seamless compliance approvals for engineering contractors, plant operators, and municipal inspectors alike.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Indonesia, Singapore, United States
    Depth207 mm

    Communications & Management Attributes

    Communication Data Link
    serial
    Communication Port ProtocolModbus

    Complementary Attributes

    Maximum Switching Current
    5 A 250 V AC resistive 1 relay outputs5 A 30 V DC resistive 1 relay outputs2 A 250 V AC inductive 0.4 20 ms relay outputs, 2 A 30 V DC inductive 7 ms relay outputs
    Maximum Horse Power Rating
    20 hp 208 V25 hp 230 V50 hp 460 V60 hp 575 V
    Control Circuit Consumption20 W
    Minimum Switching Current100 mA 12 V DC relay outputs)

    Important Information Attributes

    Persona Type Ids
    EU, LC, PB
    Electromagnetic Compatibility
    conducted and radiated emissions level A conforming to IEC 60947-4-2, damped oscillating waves level 3 conforming to IEC 61000-4-12electrostatic discharge level 3 conforming to IEC 61000-4-2, immunity to electrical transients level 4 conforming to IEC 61000-4-4immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3voltage/current impulse level 3 conforming to IEC 61000-4-5
    Certificate Agency
    C-tick, CCC, UL, CSA, GOST
    Local Publishable Date
    2026-03-25
    Stocking Flag
    N
    Device Type
    Soft starter - Soft starter
    Traceability
    Yes
    Average Life Duration
    10 year(s)
    Weee Scope
    In
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1923
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Assembly Style
    with heat sink
    Connector Type
    1 RJ45
    Device Connection
    in the motor supply line
    Function Available
    internal bypass
    Installed Device
    31
    Network Frequency
    45...66 Hz
    Operating Position
    vertical +/- 10 degree
    Power Dissipation In W
    63 W for standard applications
    Product Destination
    asynchronous motors
    Product Specific Application
    pumps and fans
    Returnability
    Yes
    Supply Frequency
    50...60 Hz - 10...10 %
    Sustainable Packaging
    No
    Type Of Cooling
    forced convection
    Utilisation Category
    AC-53A
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Width Nominal
    145 mm
    [Us] Rated Supply Voltage
    208...600 V - 15...10 %
    Package Weight(Lbs)
    8.358 kg
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Contractor, Panel Builder
    Protection Typephase failure linethermal protection motor, thermal protection starter
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ApplicabilityFinished product
    Weee Product Category5
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Component NameATS22
    Control Circuit Consumption20 W
    Factory Setting Current65 A
    Icl Starter Rating75 A connection in the motor supply line for standard applications
    MarkingCE
    Noise Level45 dB
    Phase3 phase
    Product AvailabilityStock - Normally stocked in distribution facility
    Product Or Component Typesoft starter
    Range Of ProductAltistart 22
    Shock Resistance15 gn 11 ms IEC 60068-2-27
    Supply Voltage Limits177-660 V
    Transmission Rate4800, 9600 or 19200 bps
    Type Of Startstart with torque control (current limited to 3.5 In)
    Vibration Resistance1 gn (f= 13-200 Hz) conforming to IEC 60068-2-61.5 mm (f= 2-13 Hz) conforming to IEC 60068-2-6
    Height Nominal295 mm
    [Uc] Control Circuit Voltage110 V - 15...10 % 50/60 Hz
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8537109170

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -10-40 °C (without derating), -10-40 °C (without derating)-10-40 °C (without derating), -10-40 °C (without derating)40-60 °C (with current derating 2.2 % per °C)
    Operating Altitude
    <= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m<= 3280.84 ft (1000 m) without derating, <= 3280.84 ft (1000 m) without derating, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m, > 3280.84...< 6561.68 ft (> 1000...< 2000 m) with current derating of 2.2 % per additional 100 m
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Ip Degree Of Protection
    IP20
    Packaging Without Single Use Plastic
    No
    Relative Humidity
    0-95 % without condensation or dripping water IEC 60068-2-3
    Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
    Take BackNo
    China Rohs RegulationX
    Eu Rohs DirectiveCompliant By Exemption
    Packaging Made With Recycled CardboardNo
    Reach RegulationReference contains Substances of Very High Concern above the threshold

    General Attributes

    Phase
    3 phase
    Range Of Product
    Altistart 22
    Product Or Component Typesoft starter

    ETIM

    ETIM 8
    EC000640
    ETIM 9EC000640

    Output Attributes

    Discrete Output Type
    relay outputs R1 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O, relay outputs R2 230 V running, alarm, trip, stopped, not stopped, starting, ready C/O
    Output Current
    0.4...1 Icl adjustable
    Discrete Output Number2

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Logic
    positive logic LI1, LI2, LI3 79 V, <= 2 mA
    Discrete Input Type
    LI1, LI2, LI3) logic, 5 mA 20 kOhm
    Ptc Probe Input
    750 Ohm
    Discrete Input Number3
    Discrete Input Voltage110 V <= 121 V
