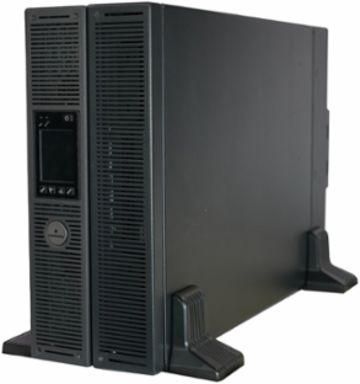

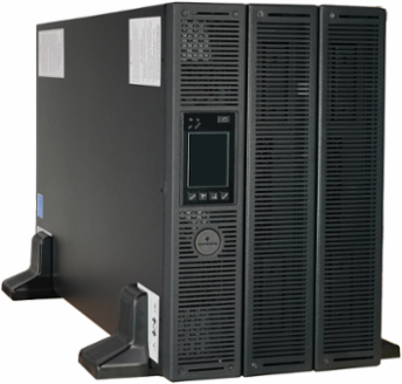

SolaHD 30HWBP2U 2U Industrial On-Line UPS 500-3000VA, 120V/230V, Single Phase
- MPN: 30HWBP2U
- PPN: SHD-30HWBP2U
CAD
$2603.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The SolaHD™ S4K4U-D 6 kVA and S4K6U-D 10 kVA Industrial uninterruptible power supplies are the first true On-Line industrial UPS that provides higher output power factor, higher efficiency, flexible output voltage, an integrated maintenance bypass switch and internal batteries all in slim 4U (7.0") and 6U (10.5") enclosures respectively
Features
- S4K4U-D and S4K6U-D are cULus Listed for use in Ordinary (Unclassified) Locations, and are IEEE/ANSI, ISTA, and ABS Approved
- S4K5U-5D is CE (IEC62040-1), IEEE/ANSI, ISTA, and ABS Approved
- Two year limited warranty
Specifications
Additional
| Capacity | 700 VA to 3000 VA |
|---|---|
| Input Voltage Range | 60 Vac to 140 Vac |
| Typical Backup Time (120 Vac, full/half load) | 700 VA/630 W: 11/27 min; 1000 VA/900 W: 7/17 min; 1500 VA/1350 W: 4/11 min; 2000 VA/1800 W: 3/11 min; 3000 VA/2700 W: 3/11 min |
| Output Power Factor | 0.90 |
| UPS Type | Single-phase, online double conversion |
| Voltage | 120 Vac, 230 Vac |
| Dimensions | 19.7 x 16.9 x 3.4 in (S4K2U700-C model) |
| Input Power Cord Length | 10 ft |
| Operating Temperature | 0 C to +40 C |
| Storage Temperature | -15 C to +50 C |
| Relative Humidity | 0% to 95%, non-condensing |
| Battery Quantity and Voltage | 4 x 12 V or 6 x 12 V depending on model |
| Recharge Time | 3 hours to 90% capacity after full discharge |
| Inverter Type | PWM inverter (pulse-width modulation) |
| Number of Phases | Single Phase |
|---|---|
| Frequency | 50/60 Hz |
| Typical Backup Time (230 Vac, full/half load) | 1000 VA/900 W: 6/17 min; 2000 VA/1800 W: 3/11 min; 3000 VA/2700 W: 3/11 min |
| Overload Capacity | 200% for 2 seconds; 150% for 50 seconds with bypass transfer |
| Output Waveform | Sine wave |
| Output Voltage Range | 110/115/120/127 Vac 3% user-configurable |
| Weight | 37 lbs to 71.4 lbs depending on model |
| Mounting | Rack-mount or stand-alone tower |
| Operating Elevation | Up to 10,000 ft (3,000 m) |
| Storage Elevation | Up to 50,000 ft (15,000 m) |
| Battery Type | Integral sealed non-spillable valve-regulated lead acid |
| Battery Capacity | 5.0 Ah to 9.0 Ah depending on model |
| Noise Suppression | Input and output noise suppression |
| Compliance | cULus, CE, FCC, UL 1778, CSA C22.2 No. 107.3, ISTA Procedure 1A, ENERGY STAR (selected models) |
