SolarHD S4K2U3000C Industrial On-Line UPS 3000VA 120V Single Phase, 2U Rack Mountable
SolarHD S4K2U3000C Industrial On-Line UPS 3000VA 120V Single Phase, 2U Rack Mountable
- MPN: S4K2U3000C
- PPN: SHD-S4K2U3000C
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

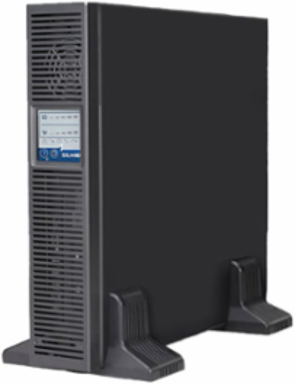

S4K2U-C and S4K2U-5C Industrial On-Line UPSs are single phase, online (double conversion) UPS available in 500-3000VA, 120V and 230V. Online design means zero transfer time from external to internal power, so when utility power fails, your critical load remains supported by a seamless flow of power. Housed in a slim 2U package, the rack or tower configurable S4K2UC offers a higher power factor, longer battery life, higher reliability and reduced cost of ownership.
Features
- cULus, CE, Federal Comminucations Commission
- Hardwire capability for permanent installation
- Small 2U height maximizes available space. Rack-mount or stand-alone tower mounting
- Input and output noise suppression
- Higher output power factor of 0.90
- PWM inverter reduces output voltage distortion
- Hot swappable user replaceable battery (integral sealed non-spillable). Add on batteries for extended back-ups
- Automatic restart. Automatic and manual battery test
- Units are field configurable with a PC as a frequency converter (bypass will be disabled)
Specifications
Specifications
- 120 Vac Capacity (VA/W)
- 700/630, 1000/900, 1500/1350, 2000/1800, 3000/2700
- 120 Vac Typical Back-up Time (minutes, full/half load)
- 700/630: 11/27; 1000/900: 7/17; 1500/1350: 4/11; 2000/1800: 3/11; 3000/2700: 3/11
- Hertz
- 50/60 Hz
- Nominal Voltage Range
- 120 Vac
- Operating Temperature
- 0°C to +40°C
230 Vac Capacity (VA/W)1000/900, 2000/1800, 3000/2700
230 Vac Typical Back-up Time (minutes, full/half load)1000/900: 6/17; 2000/1800: 3/11; 3000/2700: 3/11
Input Voltage Range60-140 Vac
Number of PhasesSingle Phase
Output Voltage Range110/115/120/127 Vac (user-configurable) ±3%
