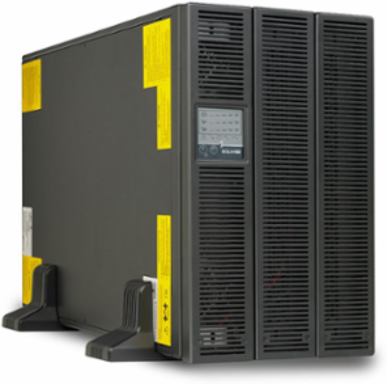

SolaHD S4K288INTBATC Industrial On-Line UPS 6 kVA/10 kVA, 4U/6U Rack Mount, True Double Conversion

MPN: S4K288INTBATC
UPC: 078347200643
PPN: SHD-S4K288INTBATC

$3687.68

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

S4K4U-C 6 kVA and S4K6U-C 10 kVA Industrial On-Line UPSs are the first true online industrial uninterruptible power systems that provide flexible output voltage, an integrated maintenance bypass switch and internal batteries all in a slim 4U (7.0") or 6U (10.5") enclosure. They feature double conversion topology to provide the ultimate in protection against a wide range of potential power problems.

Features

cULus, Federal Comminucations Commission
True double conversion topology. User replaceable, hot-swappable internal battery module
Higher power factor of 0.80 (6kVA) and 0.90 (10kVA). Automatic frequency detection (60 or 50 Hz)
Both models offer 208/120V or 240/120V
Configurable as a tower or rack mounting. Easily installed in 18” to 32” deep rack using rack mount kit # SRS1832
Highest density, 6 kVA in only 4U and 10 kVA in only 6U of rack space
Includes both automatic and manual maintenance bypass switch
Self-diagnostics simplify maintenance and troubleshooting
Remote emergency Power Off (REPO)

Documentation & Downloads

Specifications

Key Specifications

Capacity (VA/W)	6000/4800, 10000/9000
Audible Noise	<55 dBA @ 3.2FT rear; <50 dBA @ 3.2FT front/sides
Input Voltage Range	120/208 Vac at 120 °C
Number of Phases	Single Phase
Output Voltage Range	120/208 Vac

Typical Back-up Time (minutes, full/half load)	Internal Battery 6000/4800: 4/13; 10000/9000: 5/14
Hertz	50 or 60 Hz
Nominal Voltage Range	120/208 Vac
Operating Temperature	0°C to +40°C
