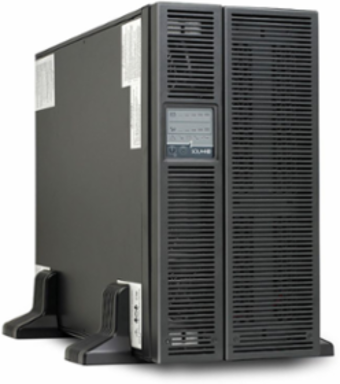

SolaHD S4K9C48INTBAT 6 kVA International On-Line UPS, 230 Vac Output, 5U Rack Space
- MPN: S4K9C48INTBAT
- PPN: SHD-S4K9C48INTBAT
CAD
$2581.64
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
S4K5U-5C 6 kVA International On-Line UPSs feature true online (double conversion) topology for the ultimate in protection against a wide range of potential power problems. Flexible output voltages are available through the configuration program to allow for international use. Self-diagnostics simplify maintenance and troubleshooting, and the UPS is user serviceable. The standard maintenance bypass switch provides an additional level of protection.
Features
- CE, EAC, ABS Type, ISTA Procedure 1A
- True double conversion topology
- Flexible L-N output voltage (220/230/240V)
- Intellislot, USB, and terminal block communication ports. Configurable as a tower or rack mount model
- High density, 6 kVA in only 5U of rack space
- User replaceable, hot-swappable internal battery module
- Matching 3U extended battery cabinets
- Self-diagnostics simplify maintenance and troubleshooting. Includes both automatic and manual maintenance bypass switch. Remote Emergency Power Off (REPO)
- Automatic frequency detection of either 60 or 50 Hz
Documentation & Downloads
Specifications
Additional
- Power Capacity
- 6000 VA / 4800 W
- Input Voltage Range
- 176-280 Vac
- Frequency
- 50 or 60 Hz
- Typical Back-up Time
- 17 min full load / 6 min half load
- Topology
- True double conversion
- Battery Module
- User replaceable, hot-swappable
Output Voltage230 Vac
Number of PhasesSingle Phase
Operating Temperature Range0 C to +40 C
Audible Noise<55 dBA rear; <50 dBA front/sides at 3.2 ft
Rack Size5U
ComplianceCE, EAC, ABS Type, ISTA Procedure 1A
