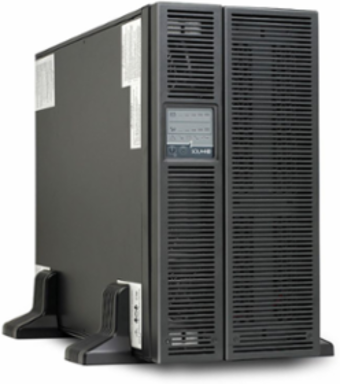

SolaHD S4K5C48INTBAT 6 kVA International On-Line UPS, 230 Vac Output Voltage, 5U Rack Space, 50/60 Hz
- MPN: S4K5C48INTBAT
- PPN: SHD-S4K5C48INTBAT
CAD
$1613.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
S4K5U-5C 6 kVA International On-Line UPSs feature true online (double conversion) topology for the ultimate in protection against a wide range of potential power problems. Flexible output voltages are available through the configuration program to allow for international use. Self-diagnostics simplify maintenance and troubleshooting, and the UPS is user serviceable. The standard maintenance bypass switch provides an additional level of protection.
Features
- CE, EAC, ABS Type, ISTA Procedure 1A
- True double conversion topology
- Flexible L-N output voltage (220/230/240V)
- Intellislot, USB, and terminal block communication ports. Configurable as a tower or rack mount model
- High density, 6 kVA in only 5U of rack space
- User replaceable, hot-swappable internal battery module
- Matching 3U extended battery cabinets
- Self-diagnostics simplify maintenance and troubleshooting. Includes both automatic and manual maintenance bypass switch. Remote Emergency Power Off (REPO)
- Automatic frequency detection of either 60 or 50 Hz
Documentation & Downloads
Specifications
Additional
- Output Voltage Range
- 230 Vac
- Capacity (VA/W)
- 6000 VA / 4800 W
- Input Voltage Range
- 176-280 Vac
- Operating Temperature
- 0 C to +40 C
- Rack Height
- 5U
Frequency50 or 60 Hz
Typical Back-up Time (minutes, full/half load)17/6
Number of PhasesSingle Phase
Audible Noise<55 dBA rear, <50 dBA front/sides @ 3.2 ft
ComplianceCE, EAC, ABS Type, ISTA 1A
