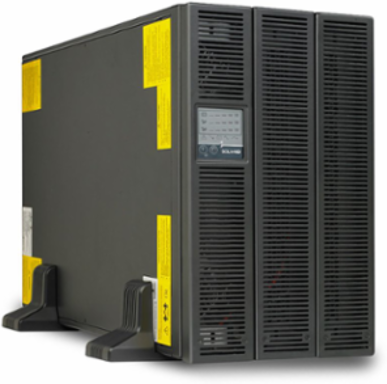

SolaHD S4KPAD2001C Industrial On-Line UPS 4U 6 kVA / 6U 10 kVA, 120/208V, Double Conversion
- MPN: S4KPAD2001C
- PPN: SHD-S4KPAD2001C
CAD
$4108.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
S4K4U-C 6 kVA and S4K6U-C 10 kVA Industrial On-Line UPSs are the first true online industrial uninterruptible power systems that provide flexible output voltage, an integrated maintenance bypass switch and internal batteries all in a slim 4U (7.0") or 6U (10.5") enclosure. They feature double conversion topology to provide the ultimate in protection against a wide range of potential power problems.
Features
- cULus, Federal Comminucations Commission
- True double conversion topology. User replaceable, hot-swappable internal battery module
- Higher power factor of 0.80 (6kVA) and 0.90 (10kVA). Automatic frequency detection (60 or 50 Hz)
- Both models offer 208/120V or 240/120V
- Configurable as a tower or rack mounting. Easily installed in 18” to 32” deep rack using rack mount kit # SRS1832
- Highest density, 6 kVA in only 4U and 10 kVA in only 6U of rack space
- Includes both automatic and manual maintenance bypass switch
- Self-diagnostics simplify maintenance and troubleshooting
- Remote emergency Power Off (REPO)
Documentation & Downloads
Specifications
Key Specifications
- Capacity (VA/W)
- 6000/4800, 10000/9000
- Audible Noise
- <55 dBA @ 3.2FT rear; <50 dBA @ 3.2FT front/sides
- Input Voltage Range
- 120/208 Vac at 120 °C
- Number of Phases
- Single Phase
- Output Voltage Range
- 120/208 Vac
Typical Back-up Time (minutes, full/half load)Internal Battery 6000/4800: 4/13; 10000/9000: 5/14
Hertz50 or 60 Hz
Nominal Voltage Range120/208 Vac
Operating Temperature0°C to +40°C
