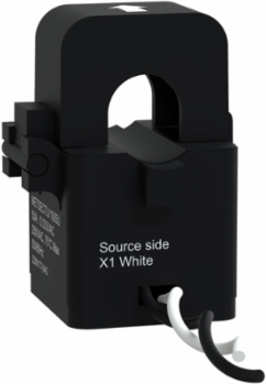

Schneider Electric METSECTLV1005U split core current transformer, PowerLogic UL2808 CT, 50A, 0.333V output, 10mm diameter, 6ft lead
- MPN: METSECTLV1005U
- PPN: SCH-METSECTLV1005U
CAD
$57.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
split core current transformer, PowerLogic UL2808 CT, 50A, 0.333V output, 10mm diameter, 6ft lead
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Mexico, United States
- Width
- 0.91 in
Height1.61 in
Depth25 mm
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Network Frequency
- 50 Hz, 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.7 kg CO2 eq., 0.6674203348537356
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.618181542801423
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
- Local Publishable Date
- 2025-09-23
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2408031_V1
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2439
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Current Transformer Type
- split core
- Electrical Connection
- flying lead 6 ft 16 AWG) 250 V
- Measurement Accuracy
- 1 %
- Product Or Component Type
- current transformer
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The split core current transformers suited for low voltage network, from 50 to 2400 A. They deliver secondary output in the form of 0.333 V or 5 A proportional to the current measured& 10at the primary
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; United States, US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; United States, US
- Height Nominal
- internal: 10 mm
- Width Nominal
- internal: 10 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504312000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.6473878316130672, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0009248531369795, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]6 kg CO2 eq., 5.892110702483441
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameLVCT
Energy Efficiency OptimizedFalse
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Software Versionv6.2
Total Lifecycle Carbon Footprint9 kg CO2 eq.
Pep CodeENVPEP2408031EN
Pep Verification Date2024-01-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; United States, US
Recyclability Potential In %80
Height Usefultotal: 41 mm
Width Realtotal: 23 mm
Package Weight(Lbs)130.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Storage
- -40-105 °C, -40-105 °C
- Reach Free Shvc
- Yes
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- 0-70 °C
- Environmental Disclosure
- ENVPEP2408031EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2024-01-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint8.826025264888647
Circularity ProfileENVEOLI2408031_V1
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2408031EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Output Voltage
- 0.333 V
