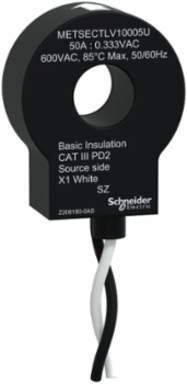

Schneider Electric METSECTLV10005U solid core current transformer, PowerLogic UL2808 CT, 50A, 0.333V output, 10mm diameter, 6ft lead
- MPN: METSECTLV10005U
- PPN: SCH-METSECTLV10005U
CAD
$54.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
solid core current transformer, PowerLogic UL2808 CT, 50A, 0.333V output, 10mm diameter, 6ft lead
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- India, Mexico, United States
- Depth
- 0.7 in
Width1.3 in
Complementary Attributes
- Line Rated Current
- 50 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- RESIDENTIAL, COMMERCIAL, INDUSTRIAL
- Network Frequency
- 50 Hz, 60 Hz
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.2 kg CO2 eq., 0.220286504124329
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.7 kg CO2 eq., 0.6999709342899039
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LVCT
- Measurement Accuracy
- 0.5 %
- Product Or Component Type
- current transformer
- Returnability
- Yes
- Sustainable Packaging
- No
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2023-02
- Pcr Version
- PCR-4-ed4-EN-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- The Solid core current transformers suited for low voltage network, from 50 A to 400 A. They deliver secondary output in the form of 0.333 V proportional to the current measured at the primary.
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; United States, US
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; United States, US
- Height Nominal
- total: 1.5 in
- Width Nominal
- 1.3 in
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8504312000
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationResidential, Commercial, Industrial
Carbon Footprint Of The Distribution Phase [A4]0.0220544317329677, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0222103559342491, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]kg CO2 eq., 0
Local Publishable Date2025-09-23
Stocking FlagN
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2408032_V1
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2439
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Current Transformer Typesolid core
Electrical Connectionflying lead 6 ft 16 AWG) 600 V
Product AvailabilityStock - Normally stocked in distribution facility
RangePowerLogic
Software Versionv6.2
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Pep CodeENVPEP2408032EN
Pep Verification Date2024-01-09
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
Data Sourceextrapolated product
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]India, IN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; United States, US
Recyclability Potential In %80
Height Usefuldiameter: 0.4 in
Width Real1.3 in
Package Weight(Lbs)117.934 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-85 °C, -40-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.9645222260814498
- Environmental Disclosure
- ENVPEP2408032EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2024-01-09
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-50-105 °C, -50-105 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2408032_V1
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2408032EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current transformer
Output Attributes
- Output Voltage
- 0.333 V
