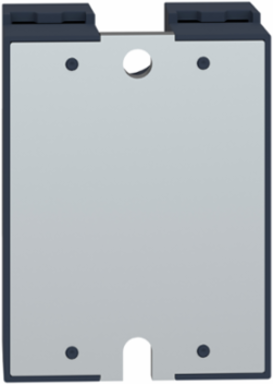

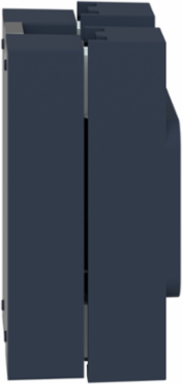

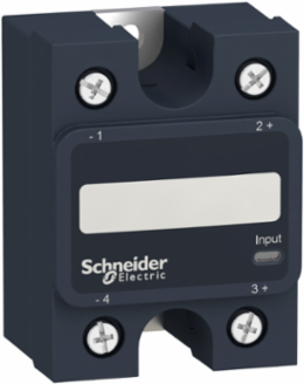

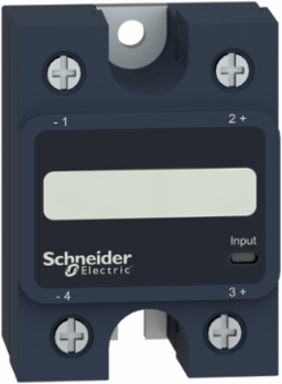

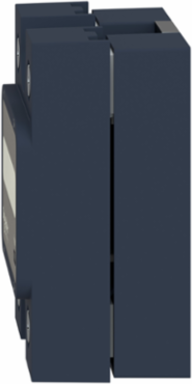

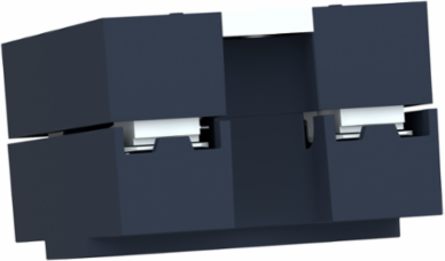

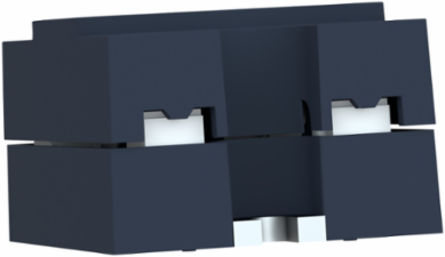

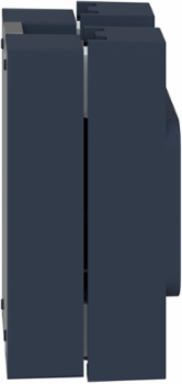

Schneider Electric SSP1A490M7T Harmony Solid State Relay 90A, 90-280V AC Input, Zero Voltage Switching

MPN: SSP1A490M7T
PPN: SCH-SSP1A490M7T

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$157.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Harmony SSP solid state panel mount single-phase relay is rated 90A, is controlled with a 90V to 280V AC input, has a rated load voltage of 48V to 660V AC with zero voltage switching, ideal for resistive loads. It has a visual indicator showing the status of its input and a alarm output enabling a quick response to unexpected events. It also has a test button for easy debugging, testing and commissioning. It is also silent and reliable thanks to the absence of moving contacts. 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France

Complementary Attributes

Maximum Voltage Drop	<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Line Rated Current	90 A
Maximum Leakage Current	1 mA off-state
Minimum Switching Voltage	90 V AC turn-on

Absolute Maximum Voltage	1200 V
Maximum Horse Power Rating	1.5 hp 120 V AC3 hp 240 V AC7.5 hp 480 V AC
Maximum Switching Voltage	10 V AC turn-off
Rated Current	90 A

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Control Type	without test button, without test button
Marking	UL, CSA, EAC, CE
Control Circuit Voltage	90...280 V
[Uc] Control Circuit Voltage	AC, 90...280 V
Connections - Terminals	ring lugs 11.7 x 4.5 mm outputscrew terminals 0.2...3.3 mm², 24 AWG...12 AWG) with cable end input, screw terminals 0.5...5.26 mm², 20 AWG...10 AWG) with cable end output, screw terminals 0.2...3.3 mm², 24 AWG...12 AWG) without cable end inputscrew terminals 0.5...8.26 mm², 20 AWG...8 AWG) without cable end outputforked type tag connectors 9.2 x 4 mm input, ring lugs 9.2 x 4 mm input, forked type tag connectors 11.7 x 4.5 mm output, screw connectors
Carbon Footprint Of The Distribution Phase [A4]	0.013147201, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.0005714174, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	9 596 kg CO2 eq., 9596.0605454638
Local Publishable Date	2026-03-26
Stocking Flag	N
Weee Scope	Out
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1505006EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Standard
Cos Phi	0.5-0.5 (with maximum load)
Insulation Resistance	1000 MOhm at 500 V DC
Local Signalling	LED, green input
Phase	1 phase
Product Or Component Type	panel mount relay
Provided Equipment	thermal pad
Response Time	30 ms (turn-off)25 ms (turn-on)
Software Version	EIME v5.8.1
Thermal Impedance	0.48 °C-in²/W at 25 psi
Tightening Torque	1.5...1.7 N.m for input2...2.2 N.m for output
Pep Code	ENVPEP1505006EN
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Mexico
Energy Model - Use [B6]	Electricity Mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %	56
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8536490080

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Dielectric Strength	4 kV AC for input/output, 4 kV AC for input or output to case
Safety Reliability Data	B10d = 1731395, MTTFd = 1875.9 years
Certificate Agency	EAC, CSA, UL, CE
[Uimp] Rated Impulse Withstand Voltage	6 kV output to case, 6 kV input to output
Maximum I²T For Fusing	5976 A².s for 8.33 ms at 60 Hz, 6560 A².s for 10 ms at 50 Hz
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0 kg CO2 eq., 0.0241240371
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	1 kg CO2 eq., 1.1309849485
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	STANDARD
Product Kit Identifier	N
Device Short Name	SSP1
Load Current	0.15-90 A
Overvoltage Category	III
Product Availability	Stock - Normally stocked in distribution facility
Protection Device Type	type 1 - 63 A miniature circuit breaker (MCB) Btype 2 - 50 A miniature circuit breaker (MCB) B
Range Of Product	Harmony Solid State Relays
Returnability	Yes
Sustainable Packaging	Yes
Thermal Resistance	0.27 °C/W junction to case
Total Lifecycle Carbon Footprint	9 597 kg CO2 eq.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	To switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unit	unité (unit)
Energy Consumption On Product Lifetime In Kwh	16253.023
Energy Model - Installation [A5]	Electricity Mix; AC; <lt/> 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity Mix; AC; <lt/> 1kV; EU-27
Dv/Dt	500 V/µs off-state at maximum voltage
Package Weight(Lbs)	101.900 g
Warranty (In Months)	18

Environment Attributes Main

Ambient Air Temperature For Operation	-40-80 °C, -40-80 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	9597.2293730678
Environmental Disclosure	ENVPEP1505006EN
Ip Degree Of Protection	IP20
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP1505006EN
Pcr Version	PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep	Independent internal review

Ambient Air Temperature For Storage	-40-125 °C, -40-125 °C
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1505006EN
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2019-05-01
Psr Version	PSR-0005-ed2-EN-2016 03 29
