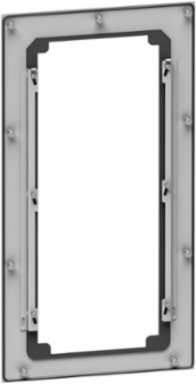

Schneider Electric NSYPTDS1 KIT FLUSH-MOUNTING POUR ATV T1

KIT FLUSH-MOUNTING POUR ATV T1
  • MPN: NSYPTDS1
  • PPN: SCH-NSYPTDS1

Spec sheet

Loading compare button...

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • Available to Order

    Company Stock:

    0

    Lead times may vary. For an accurate estimate please contact us.

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$508.69/ EA

    Description

    KIT FLUSH-MOUNTING POUR ATV T1

    Specifications

    Complementary

    Width
    external 235 mm || cut-out 190 mm
    Services
    configuration of enclosure pre-drilled back || factory installation drive flush mounting kit
    Net Weight
    1.58 kg
    Permanent Permissible Load
    4.8 kg
    Heightexternal 360 mm || cut-out 307 mm
    Colourgrey RAL 7035)
    Depthwall-enclosure separation 22 mm

    Offer Sustainability

    China Rohs Regulation
    Product out of China RoHS scope. Substance declaration for your information
    Mercury Free
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Rohs Exemption InformationYes
    Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)

    Specifications

    Nema Size
    1
    Range Compatibility
    Spacial SF and SM enclosures 400 mm x 300 mm || Spacial S3D enclosure 400 mm x 300 mm || Altivar variable speed drive ATV630 || Altivar variable speed drive ATV930
    Accessory / Separate Part Category
    mounting and fixing accessory
    Mounting Location
    1 back of enclosure mounting plate || 2 inside enclosure
    Range
    Spacial
    Product Specific Applicationprocess and utilities
    Kit Composition1 x mounting plate with flanges and integrated gasket, steel with anti-corrosive coating by screws and nuts || 1 x fixing accessories || 1 x drilling template || 1 x instruction sheet || 1 x edge protector profile, plastic
    Product Or Component Typedrive flush mounting kit
    Motor Power Kw0.75 kW 220/240 V || 4 kW 380/480 V || 5.5 kW 380/480 V || 1.5 kW 220/240 V || 2.2 kW 220/240 V || 3 kW 220/240 V || 4 kW 220/240 V || 0.75 kW 380/480 V || 1.5 kW 380/480 V || 2.2 kW 380/480 V || 3 kW 380/480 V

    Environment

    Ip Degree Of Protection
    IP55 IEC 60529
