Mersen ST600PV Surge-Trap Modular SPD 600V L-L 2500V MCOV 50 kA 2-pole DIN Rail Mountable
- MPN: ST600PV
- UPC: 782001402082
- PPN: FER-ST600PV
CAD
$300.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

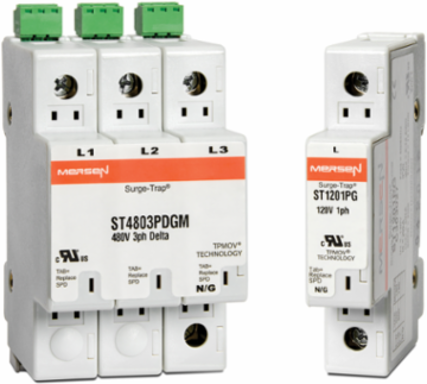

Surge-Trap® Modular Surge Protective Device (SPD) is a no-fuse, fail-safe surge suppressor featuring Mersen’s patented TPMOV® technology inside. UL 1449 4th Edition approved, it is DIN-rail mountable featuring a fail-safe self-protected design, visual indicator, and a small footprint. A remote indicator option provides status to critical control circuitry. The Surge-Trap Modular SPD has a high short circuit rating and a thermally protected MOV, which eliminates the need for additional overcurrent protection devices.
Features
- Easy installation or retrofit
- DIN-rail mountable
- Fail-safe, self-protected design
- Remote indicator (optional)
- Visual indicator
- IP20 finger-safe design
- Small footprint
- No additional overcurrent protection devices required
- 2-year warranty
Documentation & Downloads
Specifications
Key Specifications
- Frequency Hz
- 50/60 Hz
- Max Storage Temp
- 85 °C
- Min Storage Temp
- -40 °C
- Torque Rating
- 15 lb-in
- Nominal Operating Volt Rating Un
- 600 V
- Vpr L-L
- 2500 V
- Vpr N-G
- 800 V
- Product Line
- Surge-Trap® Modular SPDs DIN Rail
- Wire Type
- Solid / Stranded CU
- Connection Terminal Type
- Box
- Number Of Poles
- 2-pole
- Wire Connections
- Box
- Ul Spd Type
- Type 1 Component Assembly
- Ac Or Dc
- DC
- Nominal Discharge Current
- 20 kA
- System Configuration
- Photovoltaic
Max Operating Temp85 °C
Min Operating Temp-40 °C
Short Circuit Current Rating Sccr200 (most models) kA
Response Time<25 ns
Vpr L-G2500 V
Vpr L-N1500 V
Country Of OriginMX
Product BrandSurge-Trap®
Connection Terminal MaterialZinc-Plated Steel
Installation MountingDIN Rail
Wiring Range#6 to #14 AWG
Flammability RatingUL94 V0
Housing MaterialPET (Polyethelene Terphthalate)
Max Discharge Current Imax 8 2050 kA per phase
Number Of Wires3 Wire
