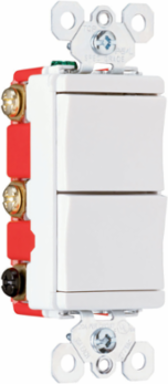

Pass & Seymour PS81120W Specification Grade Combination Switch, White, Auto-Ground and cULus Listed
- MPN: PS81120W
- UPC: 785007305890
- PPN: P-S-PS81120W
- UNSPSC: 39122211
CAD
$51.05
/ EA
Available to Order from Manufacturer
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Specification Grade Combination Switch, White, Auto-Ground and cULus Listed
Features
- Impact-resistant polycarb back body and frame.
- Cushioned thermoplastic paddle assures smooth, quiet, long term operation.
- Unique single rocking butterfly contact provides long term consistent performance with significantly fewer moving parts.
- Internal screw-pressure-plate back and side wire capability for easy installation with #14 - #10 stranded or solid copper/copper clad wire.
- Terminals made of high conductivity brass and serrated for maximum wire gripping.
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance.
- Integral auto-ground clip for positive ground to metal boxes.
- Tri-drive ground, terminal, and mounting screws.
- All terminal screws backed out, ready-to-install.
- For covering patents, see www.legrand.us/patents.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 3.812 in |
| Color | White |
| Material | Thermoplastic |
| Amperage | 20.0 A |
| Standard | cULus UL20 |
| Environmental Conditions | Flammability: UL94 V2 |
| Operating Cycles | 50000.0 |
| Load Rating | 20 A @ 277 VAC |
| Application Sector | Commercial; Industrial |
| Terminal Accommodation | #14 AWG - #10 AWG |
| Wire Connection Type | Screw Terminals |
| Throw Type | Double Throw |
| Number of Gangs | 1 |
| Warranty Type | 1-Year Limited Warranty |
| Voltage | 277 VAC |
| Type | Combination; Switch; Decorator |
| Depth | 1.59 in |
|---|---|
| Width | 1.29 in |
| Finish | Satin |
| Product Line | Pass & Seymour |
| Number of Poles | Single Pole |
| Contact Configuration | N-O |
| Special Features | Unique ““Up/Down”” switches match the look and feel of standard decorator switches. Impact-resistant face and body. Side and external screw-pressure-plate back wire accepts #12 and #14 AWG. All screws are tri-drive. Full wraparound heavy-gauge steel strap i |
| Features | Combination; Decorator Style |
| Number of Switches | 2.0 |
| Wall Plate Included | No |
| Requires Neutral Wire | Yes |
| Indoor/Outdoor | Indoor |
| Switch Type | Paddle |
| Connection Location | Back and Side |
| Mounting Type | Wall Box |
| Load Type | Universal; LED; Halogen; Incandescent; Xenon; Fluorescent; CFL |
