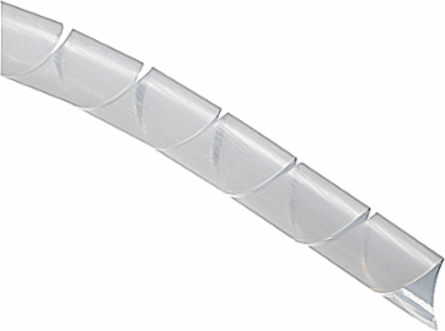

Catamount SRPE-250-9-C Spiral Wrap - Natural Polyethylene, 0.250 Inch OD, 1.14mm Wall Thickness, 100 ft Length
- MPN: SRPE-250-9-C
- UPC: 728494107325
- PPN: T-B-SRPE-250-9-C
CAD
$99.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Spiral Wrap, Natural Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Outside Diameter of 6.35mm (0.250 Inches), Pitch of 9.53mm (0.375 Inches), Nominal Wall Thickness of 1.14mm (0.045 Inches), 30.48m Reel (100 Feet)
Features
- Perfect for protection of bundles from .062 to 7 inch diameters.
- Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
- Available in three material types.
- Application Tools: SR-100
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC002604 Cable bundle hose
- Nominal diameter
- 6.35mm
- Material quality
- Polyethylene
- Transparent
- N
ModelSpiral hose
MaterialPlastic
ColourNatural colour
Wall thickness1.14mm
North American Specifications (UNSPSC)
- UNSPSC
- 39131604 Spiral wrapping
- Brand Name
- Catamount
- Special Features
- Perfect for protection of bundles from .062 to 7 inch diameters.
- Outside Diameter
- 0.25 Inches/6.35mm
- Minimum Bundle Diameter
- 0.188 Inches/4.8mm
- Material
- Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorNatural
Maximum Bundle Diameter2.0 Inches/50.8mm
Length100 ft ; 30.48 mm
Wall Thickness0.045 Inches/1.14mm
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 12
- Weight Uom
- 1.6 lbs. Each
Inner Dimensions (inches)7x7x3.25
Outer Dimensions (inches)18.1x13.2x13.8
