Documentation & Downloads

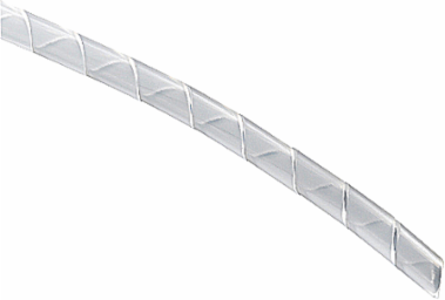

Catamount SRPE-250F-9-C Spiral Wrap, Polyethylene, 0.25 Inch OD, 100 ft Length, 2 Inch Max Bundle Diameter
- MPN: SRPE-250F-9-C
- UPC: 728494117263
- PPN: T-B-SRPE-250F-9-C
CAD
$99.53
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Forward Cut Spiral Wrap, Natural Polyethylene for Temperatures up to 50 Degrees Celsius (122 F), Outside Diameter of 6.35mm (0.250 Inches), Pitch of 9.53mm (0.375 Inches), Nominal Wall Thickness of 1.14mm (0.045 Inches), 30.48m Reel (100 Feet)
Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Install with gaps for greater flexibility or butted together for maximum abrasion resistance, insulation, and rigidity.
- Available in 3 materials.
- Application Tools: SR-100
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131604 Spiral wrapping
- Brand Name
- Catamount
- Special Features
- Perfect for protection of bundles from .063 to 7 inch diameters.
- Outside Diameter
- 0.25 Inches/6.35mm
- Minimum Bundle Diameter
- 0.188 Inches/4.8mm
- Material
- Polyethylene
IGCC5395 Spiral wrapping
TypeSpiral Wrap
ColorNatural
Maximum Bundle Diameter2.0 Inches/50.8mm
Length100 ft ; 30.48 m
Wall Thickness0.045 Inches/1.14mm
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 12
- Weight Uom
- 1.38 lbs. Each
Inner Dimensions (inches)7x7x3.25
Outer Dimensions (inches)18x12.5x12
European Specifications (ETIM)
- ETIM
- EC002604 Cable bundle hose
- Nominal diameter
- 6.35mm
- Material quality
- Polyethylene
- Transparent
- N
- Wall thickness
- 1.14mm
ModelSpiral hose
MaterialPlastic
ColourNatural colour
Fire resistant propertiesAccording to UL94 HB
