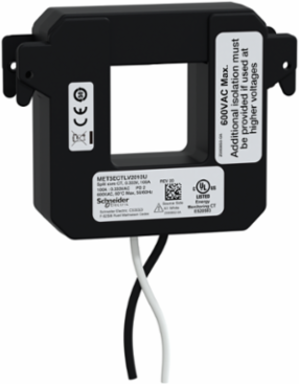

Schneider Electric METSECTLV2010U Split Core Current Transformer 100A 0.333V Output 8ft Lead

MPN: METSECTLV2010U
PPN: SCH-METSECTLV2010U

$122.05

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This split core current transformer from Schneider Electric is designed for efficient current measurement in a range of applications. With a rated current of 100A and a low output of 0.333V, it allows for precise monitoring in electrical systems. The transformer features an 8-foot lead, providing flexibility in installation and ensuring ease of integration into existing setups. Ideal for use in energy management and monitoring solutions, this product supports enhanced efficiency and reliability in electrical operations.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

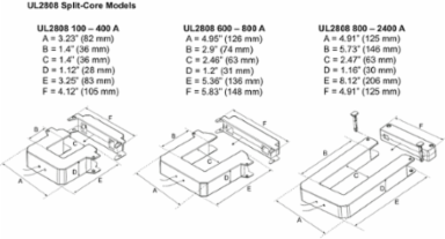

Width	4.12 in

Height	3.25 in
Depth	1.12 in

Complementary Attributes

Line Rated Current	100 A

Important Information Attributes

Network Frequency	50 Hz, 60 Hz
Certificate Agency	UL 2808, IEC 61869-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.8 kg CO2 eq., 0.7611080309257513
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	6 kg CO2 eq., 5.768142217549308
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	1
Serviceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Free of Substances of Very High Concern above the threshold
Reach Compliance Directive	Free of Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Device Short Name	LVCT
Energy Efficiency Optimized	False
Product Availability	Stock - Normally stocked in distribution facility
Range	PowerLogic
Software Version	v6.2.4
Total Lifecycle Carbon Footprint	17 kg CO2 eq.
Pep Code	ENVPEP2511066_V1-EN
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06
Data Source	extrapolated product
Functional-unit Quantity	1
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]	Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %	53
Height Useful	total: 3.25 in
Width Real	total: 4.12 in
Package Weight(Lbs)	917.000 g
Warranty (In Months)	18
Other Technical Guide Name	PLSED310049EN

Product Destination	BCPM, BCPMSC, iEM3000, EM3500, EM4200, EM4900
Carbon Footprint Of The Distribution Phase [A4]	0.4731104772368188, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0.020940721615962662, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	10 kg CO2 eq., 9.690245681103802
Local Publishable Date	2025-07-10
Stocking Flag	Y
Device Type	Relay, Control & Measurement - measuring, monitoring device
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2511066_V1-EN
Reach Full Compliance Status Id	NOT_CONTAINING_SVHC
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2508
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Current Transformer Type	split core
Electrical Connection	flying lead 8 ft 16 AWG) 600 V
Measurement Accuracy	1 %
Product Or Component Type	current transformer
Returnability	Yes
Sustainable Packaging	No
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	Other switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Technical data:& 10Output voltage: 0.333 V& 10Line Rated Current:: 300 A& 10Network Frequency: 50 Hz/60 Hz& 10Electrical connection: Flying lead 8 ft (2.4 m) AWG 16) 600 V& 10Standards: UL 2808, IEC 61869-2
Functional-unit Unit	unit
Energy Consumption On Product Lifetime In Kwh	20.148
Energy Model - Installation [A5]	No energy used
Energy Model - End Of Life [C1-c4]	Global, European and French datasets are used.
Height Nominal	internal: 1.4 in
Width Nominal	internal: 1.4 in
Nbr. Of Units In Pkg.	1
Take-back	No
Customs Code	8504312000

Environment Attributes Main

Ambient Air Temperature For Operation	-15-60 °C, -15-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	16.713547128431642
Environmental Disclosure	ENVPEP2511066_V1-EN
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
Relative Humidity	0-95 %
Pep Verification Date	2025-12-26
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI2511066_V1-EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Reach Regulation	Free of Substances of Very High Concern above the threshold
Pep Code	ENVPEP2511066_V1-EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
