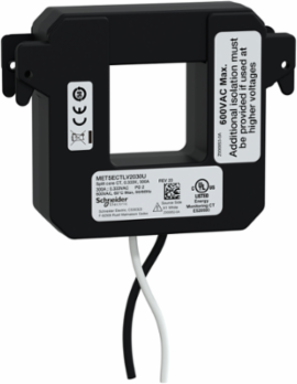

Schneider Electric METSECTLV2030U PowerLogic Split Core Current Transformer 300A 0.333V 8ft Lead
- MPN: METSECTLV2030U
- PPN: SCH-METSECTLV2030U
CAD
$133.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric PowerLogic Split Core Current Transformer is engineered to provide accurate current measurement in a compact design. With a current rating of 300A and a secondary output of 0.333V, it offers a reliable solution for monitoring electrical systems effectively. The included 8-foot lead enhances installation flexibility, making it easier to integrate into various applications. This device is an essential component for those looking to enhance energy management and ensure the efficiency of their electrical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

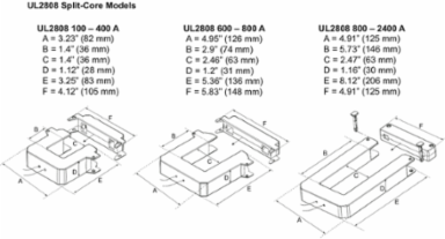

- Width
- 4.12 in
Height3.25 in
Depth1.12 in
Complementary Attributes
- Line Rated Current
- 300 A
Important Information Attributes
- Network Frequency
- 50 Hz, 60 Hz
- Certificate Agency
- UL 2808, IEC 61869-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.8 kg CO2 eq., 0.7588850063739421
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 6 kg CO2 eq., 5.751294777702506
- Other Technical Guide
- https://download.schneider-electric.com/files?p_Doc_Ref=&p_File_name=PLSED310049EN_Web.pdf, PLSED310049EN
- Local Publishable Date
- 2025-07-10
- Stocking Flag
- N
- Device Type
- Relay, Control & Measurement - measuring, monitoring device
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- LVCT
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PowerLogic
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 81 kg CO2 eq.
- Pep Code
- ENVPEP2511066_V1-EN
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 53
- Height Useful
- total: 3.25 in
- Width Real
- total: 4.12 in
- Package Weight(Lbs)
- 839.000 g
- Warranty (In Months)
- 18
- Customs Code
- 8504312000
Product DestinationBCPM, BCPMSC, iEM3000, EM3500, EM4200, EM4900
Carbon Footprint Of The Distribution Phase [A4]0.4717286284533598, 0.5 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02087955850061849, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]74 kg CO2 eq., 74.15144521192475
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511066_V1-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2508
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Transformer Typesplit core
Electrical Connectionflying lead 8 ft 16 AWG) 600 V
Measurement Accuracy1 %
Product Or Component Typecurrent transformer
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Technical data:& 10Output voltage: 0.333 V& 10Line Rated Current:: 300 A& 10Network Frequency: 50 Hz/60 Hz& 10Electrical connection: Flying lead 8 ft (2.4 m) AWG 16) 600 V& 10Standards: UL 2808, IEC 61869-2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh154.176
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalinternal: 1.4 in
Width Nominalinternal: 1.4 in
Nbr. Of Units In Pkg.1
Take-backNo
Materials For Recycling (Kg) End Of Life [C1-c4]0.2744
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-60 °C, -15-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 81.15423318295518
- Environmental Disclosure
- ENVPEP2511066_V1-EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2511066_V1-EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2511066_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Output Voltage
- 0.333 V
