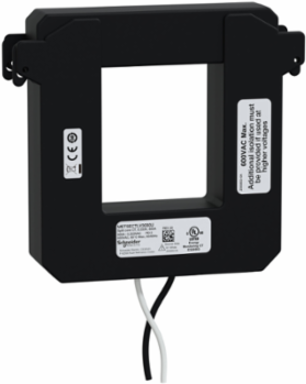

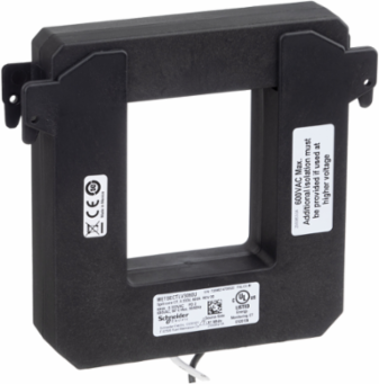

Schneider Electric METSECTLV3080U Split Core Current Transformer 800A 0.333V Output 8ft Lead
- MPN: METSECTLV3080U
- PPN: SCH-METSECTLV3080U
CAD
$223.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Schneider Electric METSECTLV3080U Split Core Current Transformer is engineered to deliver precise measurement capabilities for currents up to 800A, outputting a reliable 0.333V. Its split core design facilitates easy installation and maintenance, making it ideal for both retrofitting existing systems and integrating into new installations. With an 8-foot lead, it offers flexible connections, ensuring adaptability in various setups while maintaining robust performance. This current transformer is an essential component for accurate monitoring in electrical applications, bringing efficiency and reliability to your electrical management system.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States

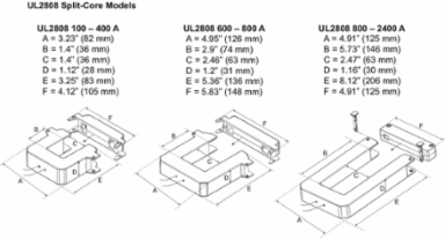

- Width
- 5.83 in
Height5.36 in
Depth1.12 in
Complementary Attributes
- Line Rated Current
- 800 A
Important Information Attributes
- Network Frequency
- 50 Hz, 60 Hz
- Certificate Agency
- UL 2808, IEC 61869-2
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 1 kg CO2 eq., 1.187243200099847
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 8 kg CO2 eq., 7.572346639219239
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 1
- Serviceability
- No
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- No
- Product Kit Identifier
- N
- Device Short Name
- LVCT
- Energy Efficiency Optimized
- False
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PowerLogic
- Software Version
- v6.2.4
- Total Lifecycle Carbon Footprint
- 203 kg CO2 eq.
- Pep Code
- ENVPEP2511067_V1-EN
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- referent product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 53
- Height Useful
- total: 5.36 in
- Width Real
- total: 5.83 in
- Package Weight(Lbs)
- 1.360 kg
- Warranty (In Months)
- 18
- Other Technical Guide Name
- PLSED310049EN
Product DestinationBCPM, BCPMSC, iEM3000, EM3500, EM4200, EM4900
Carbon Footprint Of The Distribution Phase [A4]0.5967427605819279, 0.6 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.02087955850061849, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]194 kg CO2 eq., 193.804913622076
Local Publishable Date2025-07-10
Stocking FlagY
Device TypeRelay, Control & Measurement - measuring, monitoring device
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2511067_V1-EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2508
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Current Transformer Typesplit core
Electrical Connectionflying lead 8 ft 16 AWG) 600 V
Measurement Accuracy1 %
Product Or Component Typecurrent transformer
ReturnabilityYes
Sustainable PackagingNo
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.Technical data:& 10Output voltage: 0.333 V& 10Line Rated Current:: 800 A& 10Network Frequency: 50 Hz/60 Hz& 10Electrical connection: Flying lead 8 ft (2.4 m) AWG 16) 600 V& 10Standards: UL 2808, IEC 61869-2
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh402.96
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominalinternal: 2.9 in
Width Nominalinternal: 2.46 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504312000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -15-60 °C, -15-60 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 203.18212578047763
- Environmental Disclosure
- ENVPEP2511067_V1-EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Relative Humidity
- 0-95 %
- Pep Verification Date
- 2025-12-26
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI2511067_V1-EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep CodeENVPEP2511067_V1-EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- current transformer
ETIM
- ETIM 8
- EC002048
ETIM 9EC002048
Output Attributes
- Output Voltage
- 0.333 V
