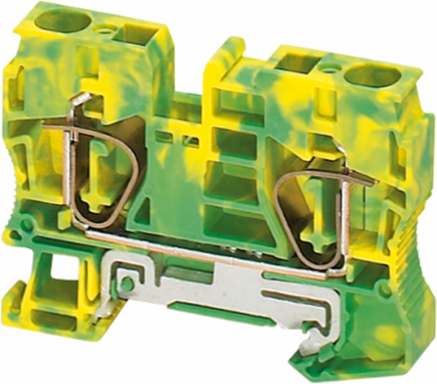

Schneider Electric NSYTRR102PE Linergy TR Terminal Block, 2 Points, 10 mm2, Green-Yellow, Set of 50
- MPN: NSYTRR102PE
- PPN: SCH-NSYTRR102PE
CAD
$17.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The Schneider Electric NSYTRR102PE Linergy TR Terminal Block is designed for efficient automation and control applications. Featuring a 2-point configuration with a 10 mm2 capacity, these terminal blocks ensure reliable electrical connections in various settings. Included in a convenient set of 50, the distinctive green-yellow coloring not only provides visibility for easy identification but also enhances organization within your electrical systems. Engineered for durability and performance, this terminal block offers a critical solution for panel builders and electricians seeking dependable connectivity in their projects.
Documentation & Downloads
Specifications
Additional
- Dielectric Strength
- 1000 V IEC 60243-1
- Number Of Measurement Input
- 2
- Cable Cross Section
- 0.2-25 mm2 solid, 0.5-10 mm2 flexible with cable end, 0.2-16 mm2 flexible without cable end
- Length
- 71.5 mm (2.81 in)
- Height
- 50.5 mm (1.99 in)
- Surface Resistance
- 1000 G IEC 60093 / VDE 0303-T30
- Creep Resistance
- 500 CTI (> 400 kB) IEC 60093 / VDE 0303-T30
- Dielectric Loss
- 0.01 at 1 MHz IEC 60250 / VDE 0303-T4
- Terminal Block Type
- Protective earth
- Connections - Terminals
- 1 x spring terminal upstream, 1 x spring terminal downstream
- Tool Type
- Flat screwdriver for connection and disconnection
- Net Weight
- 33.9 g (1.20 oz)
- Compliance
- LR, EAC, ATEX, VDE, CSA, IECEx, DNV, GL, cURus
- Halogen Content
- Halogen free plastic parts
- Sustainable Offer Status
- Green Premium product
Number Of Terminals2
Nominal Cross Section10 mm2
Ambient Air Temperature For Operation-40 to 130 C
Width10.2 mm (0.40 in)
MaterialPolyamide 6/6 insulating case
Resistivity10000 M m IEC 60093 / VDE 0303-T30
Flame RetardanceV0 (0.8 mm) UL 94
Dielectric Constant3.7 at 1 MHz
Mounting ModeClip-on
Connection PositionTop
ColorGreen-yellow
Warranty18 months
RoHSPro-active compliance (EU and China)
Country of OriginPoland
