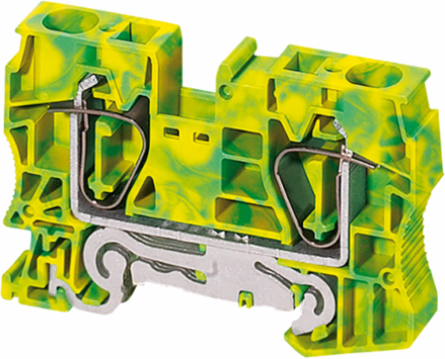

Linergy TR Terminal Block, 2 Points, 16mm², Green-Yellow, Set of 50
Schneider Electric

Schneider Electric NSYTRR162PE Linergy TR Terminal Block, 2 Points, 16mm², Green-Yellow, Set of 50

  • MPN: NSYTRR162PE
  • PPN: SCH-NSYTRR162PE
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $20.63

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Engineered for efficiency, the Linergy TR Terminal Block by Schneider Electric offers a reliable solution for your automation and control needs. This set of 50 terminal blocks features two connection points with a cross-section of 16mm², ensuring secure and effective connections for various applications. The striking green-yellow color not only enhances visibility but also aligns with standard color-coding practices in electrical installations. Whether for industrial automation or panel building, these terminal blocks are designed to streamline wiring processes and improve overall system performance.

    Documentation & Downloads

    Specifications

    Additional

    Product Certifications
    IECEx, GL, LR, cURus, ATEX, EAC, VDE, CSA, DNV
    Ambient Air Temperature for Operation
    -40-130 10C IEC 60216-1
    Creep Resistance
    500 CTI (> 400 kB) IEC 60093
    Dielectric Loss
    0.01 at 1 MHz IEC 60250
    Surface Resistance
    1000 G 46 IEC 60093
    Cable Cross Section
    0.2-25 mm2 solid, 0.2-16 mm2 flexible without cable end, 1.5-16 mm2 flexible with cable end
    Connection Position
    Top
    Length
    80 mm (3.15 in.)
    Height
    51 mm (2.01 in.)
    Mounting Mode
    Clip-on
    Material
    Polyamide 6/6 insulating case
    Country of Origin
    Poland
    Flame RetardanceV0 0.8 mm UL 94
    Dielectric Strength1000 V IEC 60243-1
    Dielectric Constant3.7 at 1 MHz
    Resistivity10000 M 46.m IEC 60093
    Nominal Cross Section16 mm2
    Number of Terminals2
    Connections - Terminals1 x spring terminal upstream, 1 x spring terminal downstream
    Width12.2 mm (0.48 in.)
    Wire Stripping Length18 mm (0.71 in.)
    Terminal Block TypeProtective earth
    ColorGreen-yellow
    Sustainable Offer StatusGreen Premium product
