Hubbell H1110BAR Utility Box, 1-7/8 in. Deep, 16.5 Cu. In., with Raised Ground Screw, 1/2 in. KO (50-Pack)
- MPN: H1110BAR
- UPC: 805035055397
- PPN: HBL-H1110BAR
CAD
$6.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

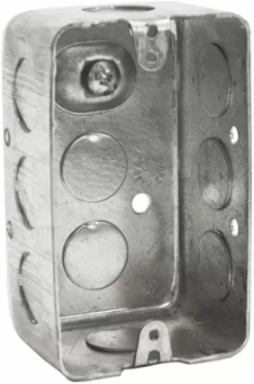

Utility Box, 1-7/8 in. Deep, 16.5 Cu. In., with Raised Ground Screw, 1/2 in. KO (50-Pack)
Features
- The Hubbell 1110BAR (also known as a "Handy Box") is a single-gang, surface-mounted steel utility box designed for convenience outlets, switches, or small junction boxes. It is the industry-standard choice for "exposed work" in commercial and residential settings where wiring is run along the surface of walls rather than inside them.
- This rectangular box measures 4 inches in height, 2-1/2 inches in width, and has a depth of 1-7/8 inches. With an internal capacity of 16.5 cubic inches, it provides the necessary volume for a single device and its associated conductors, making it compact enough for tight spaces while remaining code-compliant for standard branch circuits.
- The 1110BAR features ten 1/2-inch knockouts (three on each side, two on each end, and two in the bottom). These precision-stamped knockouts are designed to stay secure during shipping but pop out cleanly for a tight, professional fit with EMT or rigid conduit connectors.
- Fabricated from high-strength galvanized steel, this box is built to resist corrosion and physical impact. It features a raised ground screw in the bottom of the box, which provides easier access for grounding wires and ensures the ground screw doesn't interfere with the mounting of the box to a flat surface.
- The Hubbell 1110BAR is CSA (Canadian Standards Association) Certified, specifically tailored to meet the safety requirements of the Canadian Electrical Code (CEC). Its reliable construction and standardized mounting holes make it a staple for Canadian contractors in mechanical rooms, basements, and industrial utility areas.
Documentation & Downloads
Specifications
Additional
- Volume
- 16.5 cu in
- Depth
- 1.875 in
- Number of Knockouts - Side
- 6
- Number of Knockouts - Bottom
- 2
- Weight
- 0.46 lb
- Construction
- Drawn
- Certification
- CSA Listed
Wiring SystemConduit
Knockout Size1/2 in
Number of Knockouts - End2
Number of Gangs1
MaterialSteel
ColorGray
