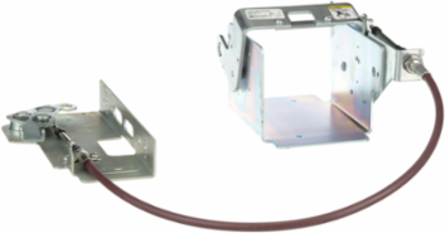

Square D 9422CSF30 Cable Operated Disconnect Mechanism, 150/250A, 3 Pole, 36 Inch Cable

Cable Operated Disconnect Mechanism, 150/250A, 3 Pole, 36 Inch Cable
  • MPN: 9422CSF30
  • UPC: 785901353263
  • PPN: SCH-9422CSF30

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$550.71/ EA

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with Compact NSF, PowerPact H and PowerPact J circuit breakers. Circuit breakers can be 2 or 3 pole with a frame size of 250 A. This mechanism has a 36 inch long cable. A 9422A operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
Pro-active China RoHS declaration (out of China RoHS legal scope)
Mercury Free
Yes
Toxic Heavy Metal Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Pvc FreeYes
Eu Rohs DirectiveCompliant
Reach Free Of SvhcYes

Environmental

Net Weight
2.60 kg

Complementary

Number Of Cables
1
Provided Equipment
ordered separately
Cable Length36 in
Circuit Breaker NameMG-NSF 2 || MG-NSF 3 || PowerPact H or J 2 || PowerPact H or J 3

Specifications

Range Of Product
9422C
Product Or Component TypeSingle Cable Operating Mechanism
