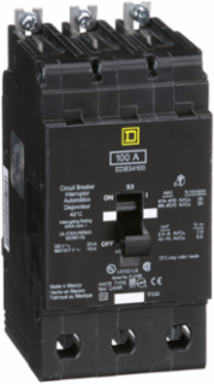

Square D EDB34100 Mini Circuit Breaker 100A 3 Pole 480Y/277V AC Bolt-On
- MPN: EDB34100
- UPC: 785901875383
- PPN: SCH-EDB34100
CAD
$1184.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
E-Frame Breaker are Lighting Panelboard Circuit breakers that are proven effective and reliable which provide a wide variety or robust features that are use specifically in Square D NF Panelboards. This range of breaker is ideally designed to offer superior overload and short circuit protection. All E-Frame breakers have a thermal-magnetic trip unit as well as signal indicator that will indicate when a trip has occur. Mounting bolts are used to hold these breakers in place. This E-Frame breaker is 100A, 3 pole, and has an operating voltage of 480Y/277 VAC. It also provides a 25 kA max interrupt rating at 120 VAC. This device has a hold current of 1000A which is the maximum current the breaker can be held to ensure it will trip and a trip current of 2300A which is the current value when the breaker is guaranteed to trip. Many accessories are available for this breaker. This breaker was calibrated for 40 degrees C. HACR rated.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Depth
- 4.05 in
ComplianceTAA Compliant
Complementary Attributes
- Line Rated Current
- 100 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Protection Type
- overload, short-circuit
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5129604189255691, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.6048550895900944, 0.6 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 1 kg CO2 eq., 1.40182223402897
- Local Publishable Date
- 2026-03-25
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Awg Gauge
- 12 AWG...2/0 AWG aluminium14 AWG...2/0 AWG copper
- Device Short Name
- EDB
- Energy Efficiency Optimized
- False
- Local Signalling
- trip indicator
- Mounting Mode
- bolt-on
- Number Of Spaces
- 3
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Trip Unit Rating
- 2300-2300 A
- Pep Code
- ENVPEP2510013EN
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 5.66 in
- Certificate Agency
- cULus
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536200040
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Tightening Torque3.9-3.9 N.m 2.5-6 mm² (14 AWG...10 AWG), 5.6-5.6 N.m 10-70 mm² (8 AWG...2/0 AWG)
Carbon Footprint Of The End-of-life Phase [C1 To C4]2 kg CO2 eq., 2.494699673539795
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 11.43788378342134
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date2534
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Circuit Breaker ApplicationHACR rated
Electrical Connectionlugs aluminium
Holding Current1000 A
Module TypeE-Frame
Number Of Poles3
Number Of Spaces Required3
Product DestinationNF panelboard
Range Of Product125 A Frame EDB-EGB-EJB
Software Versionv6.2.5-6
Total Lifecycle Carbon Footprint16 kg CO2 eq.
Trip Unit Technologythermal-magnetic
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icn, and the tripping curve Cd if applicable, and, if applicable, the specific specifications, in the Household/Commercial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US
Recyclability Potential In %30
Width Nominal2.94 in
[Ue] Rated Operational Voltage480Y/277 V AC
Package Weight(Lbs)1.601 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 16.452221199505768
- Environmental Disclosure
- ENVPEP2510013EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2510013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- miniature circuit-breaker
Range Of Product125 A Frame EDB-EGB-EJB
ETIM
- ETIM 8
- EC000042
ETIM 9EC000042
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
