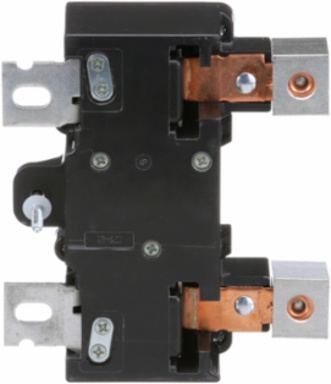

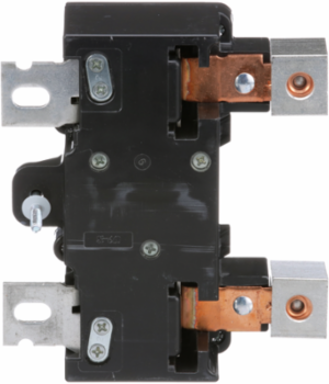

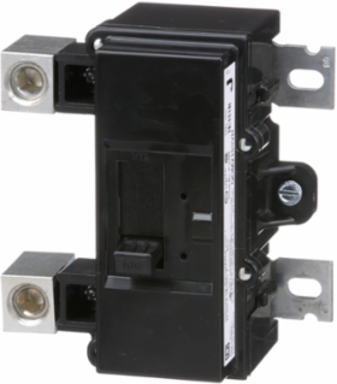

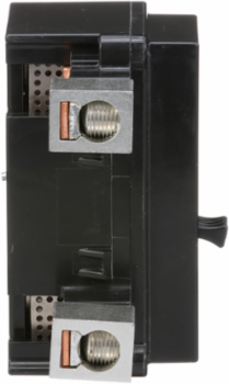

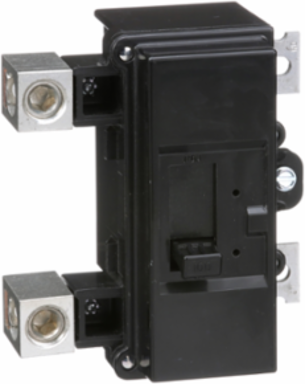

Square D QOM2100VH Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on
Square D QOM2100VH Main breaker, QO, 100A, 2 pole, 120/240VAC, 22kA, bolt on
- MPN: QOM2100VH
- UPC: 785901021957
- PPN: SCH-QOM2100VH
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$577.18/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This 2 pole QO main breaker is rated at 100A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
Conformance Attributes
- Product Certifications
- UL Listed, CSA
Complementary Attributes
- Ue Rated Operational Voltage
- 120/240 V AC, 120 V AC
- Rated Current
- 100 A
Line Rated Current100 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Product Destination
- miniature circuit-breaker QO, miniature circuit-breaker Homeline, QO load center, Homeline load center
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.1630289796
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 5 kg CO2 eq., 4.7813273469
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- N
- H And D Domain
- Safety
- H And D Enrichment Assignment
- no
- H And D Enrichment Class 3
- Circuit Breakers
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2534
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- RESIDENTIAL
- Product Kit Identifier
- N
- Circuit Breaker Application
- primary main breaker
- Device Short Name
- QOM2
- Energy Efficiency Optimized
- False
- Mounting Mode
- bolt-on
- Poles Description
- 2P
- Product Or Component Type
- miniature circuit-breaker
- Returnability
- Yes
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 254 kg CO2 eq.
- Pep Code
- ENVPEP2212007EN
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 1210
- Energy Model Manufacturing A1 A3 2
- Energy model used: Mexico
- Energy Model Use B6 2
- Electricity mix; AC; consumption mix, at consumer; 120V; US
- Offer Owner Code
- 190788
- Width Nominal
- 129 mm
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The Distribution Phase A40.4090293878, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0063691437, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6248 kg CO2 eq., 248.4799930762
Local Publishable Date2026-03-26
Return IndicatorY
Stock Policy2
H And D SubrangeRESI
H And D Enrichment FunctionMCB
H And D Enrichment Class 4MCB UL 2P
ServiceabilityNo
Field Service DivisionPPIBS
Legacy Weee ScopeIn
Scope PerimeterOutside of Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg GaugeAWG 4...300 kcmil copper or aluminium
Circuit Breaker Typestandard
Electrical Connectionlugs
Load Center Typemain breaker
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Tightening Torque28-28 N.m 25-150 mm² (AWG 4...300 kcmil)
Warranty In Months18
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120/210 V AC and rated current 200 A. This protection is ensured in accordance with the following parameters:& 10- Number of poles 2 poles& 10- Rated breaking capacity 22,000 A
Functional Unit Unitunit
Reference Lifetime In Y220
Energy Model Installation A5 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model End Of Life C1 C4 2Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal142 mm
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Manufacturing A1 A3 294.38
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 253.8397479342
- Environmental Disclosure
- ENVPEP2212007EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Take BackNej
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2212007EN
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
General Attributes
- Phase
- 1 phase
- Range Of Product
- QO
Product Or Component Typeminiature circuit-breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 91 mm
