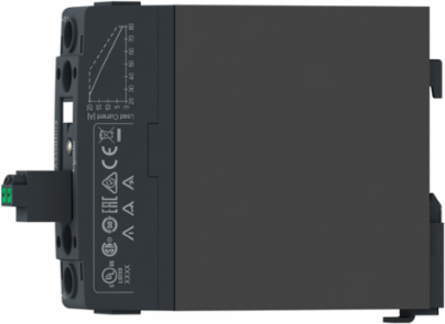

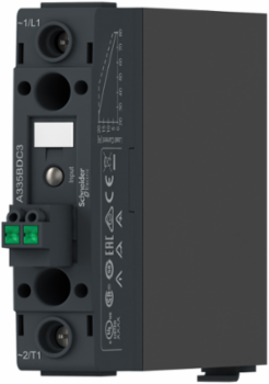

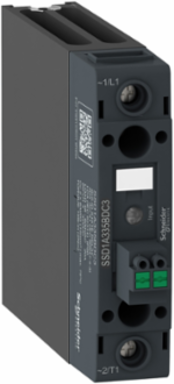

Schneider Electric SSD1A335BDC3 DIN rail mount relay, Harmony Solid State Relays, 35A,Voltage switching, input 4...32V DC, output 48...600V AC
Schneider Electric SSD1A335BDC3 DIN rail mount relay, Harmony Solid State Relays, 35A,Voltage switching, input 4...32V DC, output 48...600V AC
- MPN: SSD1A335BDC3
- PPN: SCH-SSD1A335BDC3
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$119.95/ EA
Description

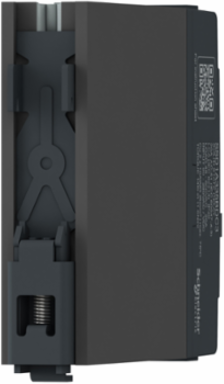

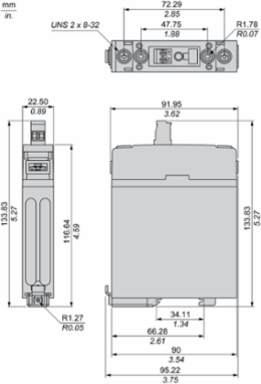

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 35A power rated relay with pluggable spring input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.301Kg and its dimensions are, 22.5mm wide, 133.8mm deep, 91.9mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Specifications
Complementary Attributes
- Maximum I T For Fusing
- 8320 A².s for 10 ms, 7593 A².s for 8.33 ms
- Uc Control Circuit Voltage
- 4...32 V DC, 4...32 V
- Absolute Maximum Voltage
- 1200 V
- Maximum Leakage Current
- 1 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
- Rated Duty
- uninterrupted
Maximum Voltage Drop<1.15 V on-state, <1.15 V on-state<1.15 V on-state, <1.15 V on-state
Uimp Rated Impulse Withstand Voltage6 kV for input/output circuit, 6 kV for input or output to case
Line Rated Current35 A
Maximum Switching Voltage1 V DC turn-off
Rated Current35 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Control Type
- without test button
- Dielectric Strength
- 4 kV AC for input/output circuit, 4 kV AC for input or output to case
- Inrush Current
- 1350 A at 60 Hz
- Mounting Support
- 35 mm symmetrical DIN rail conforming to IEC 60715
- Product Or Component Type
- modular DIN rail relay
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Connections Terminals
- plug-inspring terminals, clamping connection capacity:0.13...3.30 mm², AWG 26...AWG 12 for input, telescopic screw, clamping connection capacity:0.75...10 mm², AWG 20...AWG 8 for output, screw connectors
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0 kg CO2 eq., 0.0442747679
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 4 kg CO2 eq., 3.8379103774
- Control Circuit Voltage
- 4...32 V
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 1
- Weee Product Category
- 5
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- Yes
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- SSD1
- Flame Retardance
- V-0 conforming to UL 94
- Load Current
- 0.2-35 A
- Network Frequency
- 47...440 Hz
- Phase
- 1 phase
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 413 kg CO2 eq.
- Warranty In Months
- 18
- Pep Code
- ENVPEP1508007_V3
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Energy model used: Mexico
- Energy Model - Use [B6]
- Electricity mix; AC; < 1kV; EU-27
- Offer Owner Code
- 190786
- Height Nominal
- 94.6 mm
- Air Pollution (M3) Operational Energy Use [B6]
- 17589.4616
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 1523.7316
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 8162.2584
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 7124.1488
- Water Pollution (M3) Operational Energy Use [B6]
- 16863.6736
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Coordination Typetype 1, type 2
Electromagnetic Compatibilityelectrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria A output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
Motor Power Kw1.5 kW/2 hp at 120 V AC, 3.73 kW/5 hp at 240 V AC, 7.46 kW/10 hp at 480 V AC
Number Of Channels1
Response Time0.5 cycle (turn-on), 0.5 cycle (turn-off)
Tightening Torque2...2.2 N.m for load output, 18...20 lb.in for load output
Carbon Footprint Of The Distribution Phase A40.0416743132, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.0016607685, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6409 kg CO2 eq., 408.675776
Certificate AgencyIEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeOut
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1930
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Contact FormForm 5 semiconductor output DOL contactor
Dv Dt500 V/µs off-state at maximum rated voltage
Insulation Resistance1000 MOhm at 500 V DC
Local SignallingLED (green) for control voltage
Overvoltage CategoryIII
Power Factor0.5 with maximum load
Product Configuration Typecontactor configuration with pluggable spring input
ReturnabilityNo
Sustainable PackagingYes
Vibration Resistance0.75 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
X Product Configuration Typecontactor configuration with pluggable spring input
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional-unit Unitunité (unit)
Energy Consumption On Product Lifetime, In Kwh834.1272
Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27
Pn1
Width Nominal22.5 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]4638.6952
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]7124.1488
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1037.898
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1037.898
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-80 °C, -40-80 °C
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 412.601296227
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Ambient Air Temperature For Storage-40-100 °C, -40-100 °C
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1508007_V3
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1508007_V3
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- modular DIN rail relay
- Range Of Product
- Harmony Solid State Relays
Phase1 phase
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching
- Solid State Output Type
- zero voltage switching
Output Voltage48...600 V AC
Input Attributes
- Input Current Limits
- 10-15 mA
Specifications
- Country of Origin
- Mexico, United States
Depth135.2 mm
Overview Attributes
- Device Presentation
- complete product
