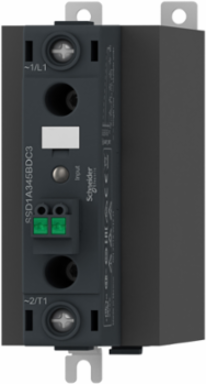

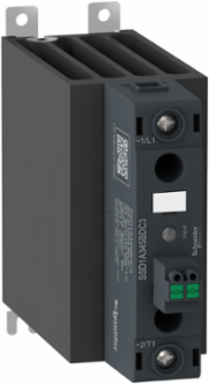

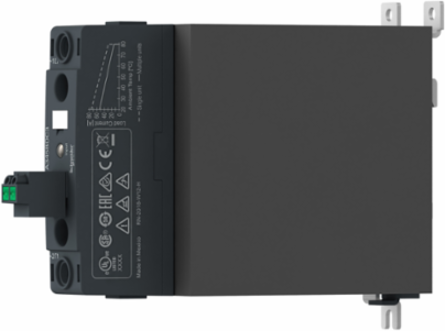

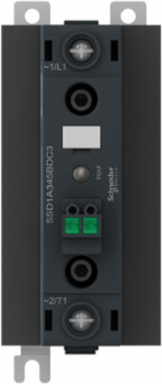

Schneider Electric SSD1A345BDC3 Harmony 45A Solid State Relay, 4-32V DC Input, 48-600V AC Output
Schneider Electric SSD1A345BDC3 Harmony 45A Solid State Relay, 4-32V DC Input, 48-600V AC Output
- MPN: SSD1A345BDC3
- PPN: SCH-SSD1A345BDC3
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$144.26/ EA
Description

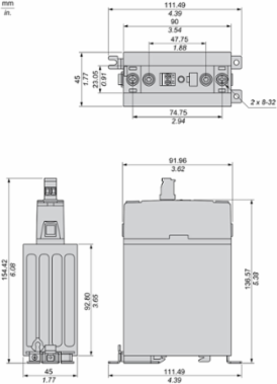

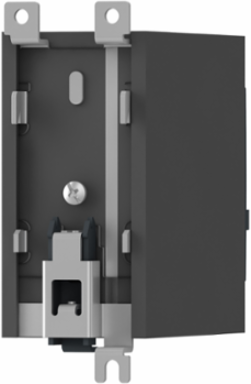

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with pluggable spring input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Specifications
Conformance Attributes
- Standards
- IEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508
Complementary Attributes
- Maximum I T For Fusing
- 2563 A².s for 10 ms, 2343 A².s for 8.33 ms
- Uc Control Circuit Voltage
- 4...32 V DC, 4...32 V
- Absolute Maximum Voltage
- 1200 V
- Maximum Leakage Current
- 1 mA off-state
- Minimum Switching Voltage
- 4 V DC turn-on
- Rated Duty
- uninterrupted
Maximum Voltage Drop<1.25 V on-state, <1.25 V on-state, <1.25 V on-state, <1.25 V on-state
Uimp Rated Impulse Withstand Voltage6 kV for input/output circuit, 6 kV for input or output to case
Line Rated Current45 A
Maximum Switching Voltage1 V DC turn-off
Rated Current45 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Coordination Type
- type 1, type 2
- Electromagnetic Compatibility
- electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
- Response Time
- 0.5 cycle (turn-on), 0.5 cycle (turn-off)
- Tightening Torque
- 2...2.2 N.m for load output, 18...20 lb.in for load output
- Carbon Footprint Of The Distribution Phase A4
- 0.0722526792, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0028793509, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 486 kg CO2 eq., 485.930176
- Local Data Status
- Publishable
- Global Commercial Status
- Commercialised
- Stocking Flag
- Y
- Legacy Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Contact Form
- Form 5 semiconductor output DOL contactor
- Device Short Name
- SSD1
- Flame Retardance
- V-0 conforming to UL 94
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for control voltage
- Network Frequency
- 47...440 Hz
- Overvoltage Category
- III
- Power Factor
- 0.5 with maximum load
- Product Configuration Type
- contactor configuration with pluggable spring input
- Range Of Product
- Harmony Solid State Relays
- Software Version
- EIME v5.8.1
- Total Lifecycle Carbon Footprint
- 493 kg CO2 eq.
- Warranty In Months
- 18
- Pep Code
- ENVPEP1508007_V3
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Quantity
- 1
- Product Weight In G2
- 560
- Energy Consumption On Product Lifetime In Kwh
- 991.8072
- Energy Model Installation A5 2
- Electricity mix; AC; < 1kV; EU-27
- Energy Model End Of Life C1 C4 2
- Electricity mix; AC; < 1kV; EU-27
- Height Nominal
- 113.1 mm
- Depletion Of Abiotic Resources Fossil Fuels Mj Operational Energy Use B6 2
- 5515.5752
- Total Use Of Non Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 8470.8688
- Total Use Of Renewable Primary Energy Resources Primary Energy And Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 1234.098
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 2
- 1234.098
- Water Pollution M3 Operational Energy Use B6 2
- 20051.5136
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Dielectric Strength4 kV AC for input/output circuit, 4 kV AC for input or output to case
Motor Power Kw0.75 kW/1 hp at 120 V AC, 2.24 kW/3 hp at 240 V AC, 3.73 kW/5 hp at 480 V AC
Shock Resistance50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
Connections Terminalsplug-inspring terminals, clamping connection capacity:0.13...3.30 mm², AWG 26...AWG 12 for input, clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output, screw connectors
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0767612075
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.6539622642
Control Circuit Voltage4...32 V
Local Publishable Date2026-01-12
Return IndicatorN
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Control Typewithout test button
Dv Dt500 V/µs off-state at maximum rated voltage
Inrush Current750 A at 60 Hz
Load Current0.2-45 A
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Number Of Channels1
Phase1 phase
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemodular DIN rail relay
ReturnabilityNo
Sustainable PackagingYes
Vibration Resistance0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
X Product Configuration Typecontactor configuration with pluggable spring input
Database Version2016-11
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.
Functional Unit Unitunité (unit)
Reference Lifetime In Y210
Energy Model Manufacturing A1 A3 2Energy model used: Mexico
Energy Model Use B6 2Electricity mix; AC; < 1kV; EU-27
Offer Owner Code190786
Width Nominal45 mm
Non Hazardous Waste Disposed Of Kg Operational Energy Use B6 21811.7716
Total Use Of Primary Energy During The Life Cycle Mj Operational Energy Use B6 29705.2184
Use Of Non Renewable Primary Energy Excluding Non Renewable Primary Energy Resources Used As Raw Materials Mj Operational Energy Use B6 28470.8688
Air Pollution M3 Operational Energy Use B6 220914.5016
Environment Attributes Main
- Take Back
- Nej
- China Rohs Regulation
- X
- Carbon Footprint
- 492.7360315019
- Ambient Air Temperature For Storage
- -40-100 °C
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2019-12-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-80 °C
Environmental DisclosureENVPEP1508007_V3
Ip Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1508007_V3
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
ETIM
- ETIM 8
- EC002055
ETIM 9EC002055
Output Attributes
- Output Switching Mode
- zero voltage switching
- Solid State Output Type
- zero voltage switching
Output Voltage48...600 V AC
Input Attributes
- Input Current Limits
- 10-15 mA
Specifications
- Depth
- 148.1 mm
Overview Attributes
- Device Presentation
- complete product
