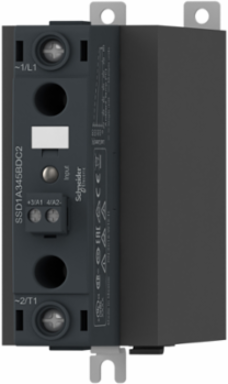

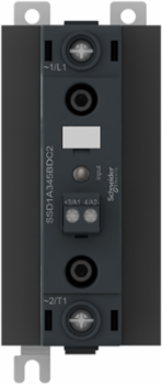

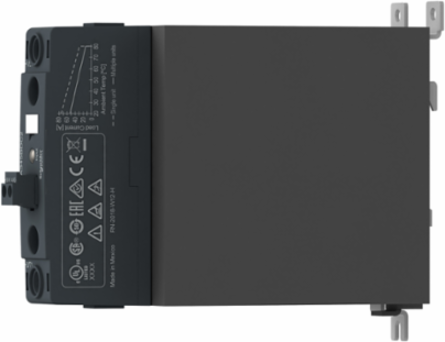

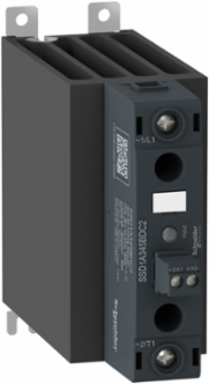

Schneider Electric SSD1A360BDC2 Harmony Solid State Relay 60A, IP20, 48-600V AC Output, Zero Voltage Switching
Schneider Electric SSD1A360BDC2 Harmony Solid State Relay 60A, IP20, 48-600V AC Output, Zero Voltage Switching
- MPN: SSD1A360BDC2
- PPN: SCH-SSD1A360BDC2
- UNSPSC: 39122333
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$157.92/ EA
Description

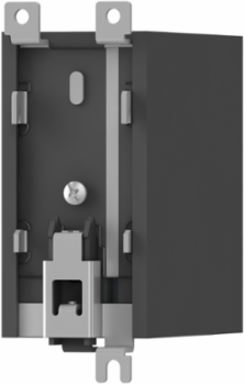

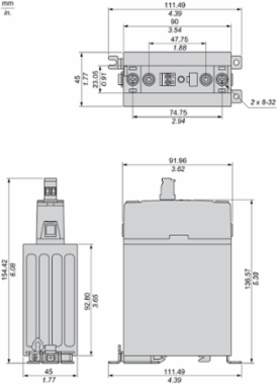

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 60A power rated relay with pluggable screw input contactor type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 4Vdc to 32Vdc input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.
Features
- Silent and reliable due to the absence of moving contacts
- IP67 and resistant to shocks, vibration and pollution: ideal for harsh industrial environments
- Unlimited electrical endurance: reduce your maintenance and downtime costs
- Wide control voltage for improved process stability even in the case of fluctuation control power supply voltage
- Plug-in base allows for a quick replacement
- One reference for pre-assembled socket and relay hence simplifying customer selection process
- Save the time in assembling the relay and socket and subsequently to save the labour cost for customers
- Elminates the risk of PCB pins bending during assembly
Specifications
Conformance Attributes
- Standards
- IEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508
Complementary Attributes
- Maximum I T For Fusing
- 8320 A².s for 10 ms, 7593 A².s for 8.33 ms
- Line Rated Current
- 60 A
- Maximum Switching Voltage
- 1 V DC turn-off
- Absolute Maximum Voltage
- 1200 V
Maximum Voltage Drop<1.2 V on-state, <1.2 V on-state, <1.2 V on-state, <1.2 V on-state
Maximum Leakage Current1 mA off-state
Minimum Switching Voltage4 V DC turn-on
Rated Dutyuninterrupted
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Dielectric Strength
- 4 kV AC for input/output circuit, 4 kV AC for input or output to case
- Motor Power KW
- 1.5 kW/2 hp at 120 V AC, 3.73 kW/5 hp at 240 V AC, 7.46 kW/10 hp at 480 V AC
- Shock Resistance
- 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27
- Uc Control Circuit Voltage2
- 4...32 V DC, 4...32 V
- Carbon Footprint Of The Distribution Phase A4
- 0.071607566, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.0028536425, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 621 kg CO2 eq., 621.125376
- Coordination Type
- type 1, type 2
- Uimp Rated Impulse Withstand Voltage5
- 6 kV for input/output circuit, 6 kV for input or output to case
- Local Publishable Date
- 2026-01-12
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Device Short Name
- SSD1
- Flame Retardance
- V-0 conforming to UL 94
- Insulation Resistance
- 1000 MOhm at 500 V DC
- Local Signalling
- LED (green) for control voltage
- Network Frequency
- 47...440 Hz
- Package Weight Lbs
- 555.0 g
- Power Factor
- 0.5 with maximum load
- Product Or Component Type
- modular DIN rail relay
- Returnability
- Yes
- Total Lifecycle Carbon Footprint
- 628 kg CO2 eq.
- Medium Desc
- DIN rail mount, Harmony Solid State Relays, 60A, zero Voltage switching, contactor configuration screw input, input 4 to 32V DC, output 48 to 600V AC
- Product Kit Identifier
- N
- Database Version
- 2016-11
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- To switch ON/OFF electronic contact during 10 years at a 50% use rate.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Mexico
- Energy Model Use B6 2
- Electricity mix; AC; < 1kV; EU-27
- Contact Form
- Form 5 semiconductor output DOL contactor
- Global Commercial Status
- Commercialised
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electromagnetic Compatibilityelectrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for DC input supply conforming to IEC 60947-4-3, conducted emission environment B for DC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11
Response Time0.5 cycle (turn-on), 0.5 cycle (turn-off)
Tightening Torque0.5 N.m for control input, 5 lb.in for control input, 2...2.2 N.m for load output, 18...20 lb.in for load output
Uimp Rated Impulse Withstand Voltage26 kV for input/output circuit, 6 kV for input or output to case
Carbon Footprint Of The End Of Life Phase C1 To C40.1 kg CO2 eq., 0.0760758396
Carbon Footprint Of The Manufacturing Phase A1 To A37 kg CO2 eq., 6.5945518868
Connections Terminalsplug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input, clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output, screw connectors
Connections Terminals3plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input, clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output
Local Data StatusPublishable
Legacy WEEE ScopeOut
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Control Typewithout test button
DV DT500 V/µs off-state at maximum rated voltage
Inrush Current1350 A at 60 Hz
Load Current0.15-60 A
Mounting Support35 mm symmetrical DIN rail conforming to IEC 60715
Overvoltage CategoryIII
Phase1 phase
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductHarmony Solid State Relays
Sustainable PackagingYes
Vibration Resistance0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6
Stocking FlagY
Pep CodeENVPEP1508007_V3
Pep Verification Date2019-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
Data Sourceextrapolated product
Functional Unit Unitunité (unit)
Energy Model Installation A5 2Electricity mix; AC; < 1kV; EU-27
Energy Model End Of Life C1 C4 2Electricity mix; AC; < 1kV; EU-27
Product Configuration Typecontactor configuration with pluggable screw input
Uc Control Circuit Voltage54...32 V DC
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Carbon Footprint
- 627.8704649349
- Ambient Air Temperature For Storage
- -40-100 °C
- IP Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1508007_V3
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-80 °C
Environmental DisclosureENVPEP1508007_V3
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2019-12-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Phase
- 1 phase
- Range Of Product
- Harmony Solid State Relays
Product Or Component Typemodular DIN rail relay
Output Attributes
- Output Voltage
- 48...600 V AC
- Output Switching Mode
- zero voltage switching
Solid State Output Typezero voltage switching
Input Attributes
- Input Current Limits
- 10-15 mA
Specifications
- Depth
- 154.4 mm
Overview Attributes
- Device Presentation
- complete product
