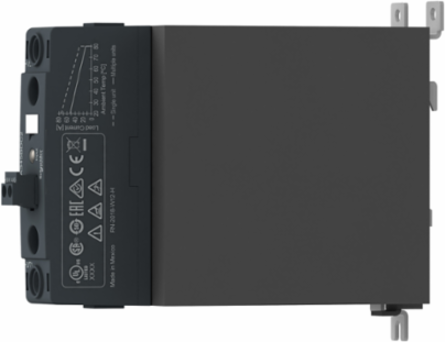

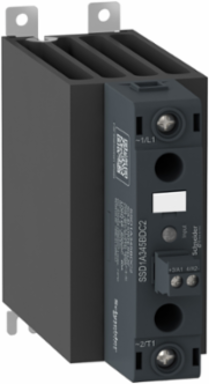

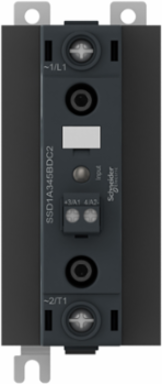

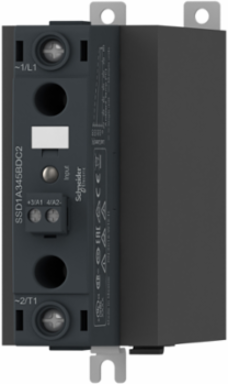

Schneider Electric SSD1A345M7C2 single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC

single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC - https://media.province-electric.com/228/schneider_synd_us_xlsx/medium/c94d1fa96aff3573647904513625579d0424989f-medium.png

single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC

Schneider Electric SSD1A345M7C2 single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC

MPN: SSD1A345M7C2
PPN: SCH-SSD1A345M7C2

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$151.85/ EA

Qty:

Loading add to cart quantity...

Description

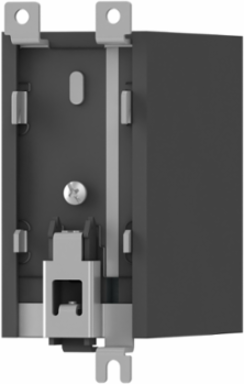

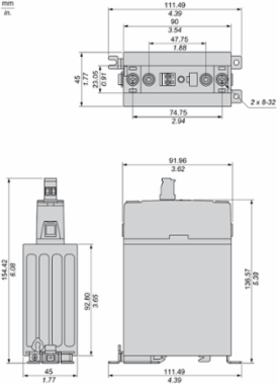

This solid state DIN rail mounted relay belongs to the Schneider Electric Harmony solid state relays range. This electrical relay mounts on 35mm DIN rail and comes with a secure mounting latch. This is a 45A power rated relay with relay type configuration and zero voltage switching. This single-phase relay has a IP20 built-in heat sink and a built-in transient overvoltage protection. It is controlled with a 90Vdc/Vac to 280Vdc/Vac input, has a rated load voltage of 48Vac to 600Vac. It also has a LED input voltage status indicator and clip-in legend for easy identification. It weighs 0.507Kg and its dimensions are, 45mm wide, 154.4mm deep, 111.5mm high. It is the ideal solution for packaging, plastic molding, textile, and heating furnace applications. This relay conforms to international standards like EN/IEC 60068, IEC 61373, UL 508, CSA C22.2 No 14-13 and certifications like UL and CSA. Besides the existing standard screw connection for input and output, SSD provides more wiring options like the spring or screw pluggable input connectors, and telescopic or clamp cage output terminals.

Specifications

Complementary Attributes

Maximum I T For Fusing: 2563 A².s for 10 ms, 2343 A².s for 8.33 ms

Uc Control Circuit Voltage: 90...280 V AC/DC, 90...280 V

Absolute Maximum Voltage: 1200 V

Maximum Leakage Current: 1 mA off-state

Minimum Switching Voltage: 90 V AC/DC turn-on

Rated Duty: uninterrupted

Maximum Voltage Drop<1.25 V on-state, <1.25 V on-state<1.25 V on-state, <1.25 V on-state

Uimp Rated Impulse Withstand Voltage6 kV for input/output circuit, 6 kV for input or output to case

Line Rated Current45 A

Maximum Switching Voltage5 V AC/DC turn-off

Rated Current45 A

Important Information Attributes

Persona Type Ids: BM9, EU, LC, OM, OM8, PB, SC, SI, VR

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Control Type: without test button

Dielectric Strength: 4 kV AC for input/output circuit, 4 kV AC for input or output to case

Inrush Current: 750 A at 60 Hz

Mounting Support: 35 mm symmetrical DIN rail conforming to IEC 60715

Product Or Component Type: modular DIN rail relay

Shock Resistance: 50 gn for 11 ms (peak acceleration) , longitudinal position conforming to IEC 60068-2-27, 30 gn for 11 ms (peak acceleration) , vertical position conforming to IEC 60068-2-27

Connections Terminals: plug-inscrew terminals, clamping connection capacity:0.08...3.30 mm², AWG 28...AWG 12 for input, clamp terminal, clamping connection capacity:10...26.67 mm², AWG 8...AWG 3 for output, screw connectors

Carbon Footprint Of The End Of Life Phase C1 To C4: 0.1 kg CO2 eq., 0.076624134

Carbon Footprint Of The Manufacturing Phase A1 To A3: 7 kg CO2 eq., 6.6420801887

Control Circuit Voltage: 90...280 V

Local Data Status: Publishable

Return Indicator: N

Stock Policy: 2

Weee Product Category: 5

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant By Exemption

Rohs Eur Full Compliance Status: Compliant By Exemption

China Rohs Label: 5

Without Single Use Plastic: Yes

Tier Id: 2

Function Option Id: STANDARD

Product Kit Identifier: N

Device Short Name: SSD1

Flame Retardance: V-0 conforming to UL 94

Load Current: 0.2-45 A

Network Frequency: 47...440 Hz

Phase: 1 phase

Product Availability: Non-Stock - Not normally stocked in distribution facility

Range Of Product: Harmony Solid State Relays

Software Version: EIME v5.8.1

Total Lifecycle Carbon Footprint: 498 kg CO2 eq.

Warranty In Months: 18

Pep Code: ENVPEP1508007_V3

Pep Verification Date: 2019-12-01

Psr Version: PSR-0005-ed2-EN-2016 03 29

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 10

Energy Model - Manufacturing [A1-a3]: Energy model used: Mexico

Energy Model - Use [B6]: Electricity mix; AC; < 1kV; EU-27

Offer Owner Code: 190786

Height Nominal: 113.1 mm

Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]: 9808.0824

Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]: 1247.178

Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner

Market SegmentationCommercial, Industrial

Coordination Typetype 1, type 2

Electromagnetic Compatibilitysurge immunity test 1 kV criteria B input ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B input ports line to earth conforming to IEC 61000-4-5electrostatic discharge 6 kV criteria A contact discharge conforming to IEC 61000-4-2, electrostatic discharge 8 kV criteria A air discharge conforming to IEC 61000-4-2, conducted RF disturbances 10 V, 0.15...80 MHz criteria A level 3 conforming to IEC 61000-4-6, electrical fast transient/burst immunity test 2 kV, 5/100 kHz criteria B output ports conforming to IEC 61000-4-4, electrical fast transient/burst immunity test 1 kV, 5/100 kHz criteria B input ports conforming to IEC 61000-4-4, radiated radio-frequency electromagnetic field immunity test 10 V/m, 80 MHz...1 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 3 V/m, 1.4...2 GHz criteria A conforming to IEC 61000-4-3, radiated radio-frequency electromagnetic field immunity test 1 V/m, 2...2.7 GHz criteria A conforming to IEC 61000-4-3, surge immunity test 1 kV criteria B output ports line to line conforming to IEC 61000-4-5, surge immunity test 2 kV criteria B output ports line to earth conforming to IEC 61000-4-5, radiated emission environment B for AC input supply conforming to IEC 60947-4-3, conducted emission environment A for AC input supply conforming to IEC 60947-4-3, immunity to microbreaks and voltage drops 30 %, 500 ms criteria A conforming to IEC 61000-4-11, immunity to microbreaks and voltage drops 100 %, 20 ms criteria B conforming to IEC 61000-4-11

Motor Power Kw0.75 kW/1 hp at 120 V AC, 2.24 kW/3 hp at 240 V AC, 3.73 kW/5 hp at 480 V AC

Number Of Channels1

Response Time20 ms (turn-on), 30 ms (turn-off)

Tightening Torque0.5 N.m for control input, 5 lb.in for control input, 2...2.2 N.m for load output, 18...20 lb.in for load output

Carbon Footprint Of The Distribution Phase A40.0721236566, 0.1 kg CO2 eq.

Carbon Footprint Of The Installation Phase A50.0028742092, 0 kg CO2 eq.

Carbon Footprint Of The Use Phase B2 B3 B4 B6491 kg CO2 eq., 491.0804693333

Certificate AgencyIEC 61373:class B: category 1, IEC 60947-4-3, IEC 62314, IEC 60950-1, CSA C22.2 No 14-13, UL 508

Local Publishable Date2026-01-12

Stocking FlagY

Weee ScopeOut

Scope PerimeterAt least in Europe

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeNo

Rohs Eur Conformity Date1930

China Rohs In ScopeYes

With Recycled CardboardYes

Product Contributes To Saved And Avoided EmissionsNo

Tier2

Function OptionStandard

Contact FormForm 5 semiconductor output DOL contactor

Dv Dt500 V/µs off-state at maximum rated voltage

Insulation Resistance1000 MOhm at 500 V DC

Local SignallingLED (green) for control voltage

Overvoltage CategoryIII

Power Factor0.5 with maximum load

Product Configuration Typecontactor configuration with pluggable screw input

ReturnabilityNo

Sustainable PackagingYes

Vibration Resistance0.35 mm (f = 10-150 Hz) conforming to IEC 60068-2-6

X Product Configuration Typecontactor configuration with pluggable screw input

Database Version2016-11

Pcr VersionPCR-ed3-EN-2015 04 02

Type Of Verification For The PepIndependent internal review

Functional-unit DescriptionTo switch ON/OFF electronic contact during 10 years at a 50% use rate.

Functional-unit Unitunité (unit)

Energy Consumption On Product Lifetime, In Kwh1002.3192

Energy Model - Installation [A5]Electricity mix; AC; < 1kV; EU-27

Energy Model - End Of Life [C1-c4]Electricity mix; AC; < 1kV; EU-27

Pn1

Width Nominal45 mm

Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]1247.178

Environment Attributes Main

Ambient Air Temperature For Operation: -40-80 °C, -40-80 °C

Take Back: No

China Rohs Regulation: X

Carbon Footprint: 497.8741715218

Eu Rohs Directive: Compliant By Exemption

Packaging Made With Recycled Cardboard: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Pep Verification Date: 2019-12-01

Psr Version: PSR-0005-ed2-EN-2016 03 29

Ambient Air Temperature For Storage-40-100 °C, -40-100 °C

Recycled Metal Content At Cr Level0 %

Mercury FreeYes

Environmental DisclosureENVPEP1508007_V3

Ip Degree Of ProtectionIP20

Packaging Without Single Use PlasticYes

Pep CodeENVPEP1508007_V3

Pcr VersionPCR-ed3-EN-2015 04 02

Type Of Verification For The PepIndependent internal review

General Attributes

Product Or Component Type: modular DIN rail relay

Range Of Product: Harmony Solid State Relays

Phase1 phase

ETIM

ETIM 8: EC002055

ETIM 9EC002055

Output Attributes

Output Switching Mode: zero voltage switching

Solid State Output Type: zero voltage switching

Output Voltage48...600 V AC

Input Attributes

Input Current Limits: 3-4 mA

Specifications

Country of Origin: Mexico, United States

Depth147.7 mm

Overview Attributes

Device Presentation: complete product

Schneider Electric SSD1A345M7C2 single phase panel, Harmony Solid State Relays, 45A, DIN rail mount, zero voltage switching, input 90...280 V AC DC, output 48...600 V AC
