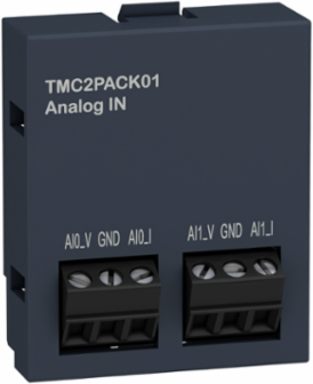

Schneider Electric TMC2PACK01 Modicon M221 Analogue Input Cartridge 2 Inputs, 12 Bits, 35mm Width

MPN: TMC2PACK01
PPN: SCH-TMC2PACK01
UNSPSC: 32151705

$148.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

cartridge M221 - packaging 2 analog inputs - I/O extension This product is part of the Modicon M221 range, an offer of programmable logic controllers for hardwired architectures. This application cartridge is an option for Modicon M221C logic controller. It provides 2 dedicated analog inputs for controlling the temperature on a packaging machine. The analog input types are current 0 to 20 mA, 4 to 20 mA and voltage 0 to 10 v. This product requires minimal installation and offers tremendous versatility. The input cable type is twisted shielded pairs cable. The electrical connection is 3x 1.5mm², on 2 screw terminal blocks with pitch 3.81mm adjustment for inputs. The max. cable distance between devices is lower than 30m for input. There is no insulation between analog input and internal logic. It is equipped with non removable screw terminal for electrical connection. Its dimensions are 35mm (Width) x 15mm (Depth) x 41mm (Height). It weighs 0.015kg. This product is certified by CE, IACS E10, CSA, RCM, LR, ABS, DNV-GL, EAC and CULus. It meets EN/IEC 61010-2-201, EN/IEC 61131-2 and EN/IEC 60664-1 standards. This cartridge is compatible with Modicon M221C PLC.

Features

SD card and USB port
2 analog inputs and a broad choice of I/Os
Run/stop switch and cartridge extension
Ethernet and serial line ports
A bus connector is set to distribute data and power supply when coupling Modicon TM3 expansion modules to Modicon PLC

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	China
Depth	15 mm

Weight	40 g

Complementary Attributes

Maximum Cable Distance Between Devices	twisted shielded pairs cable <30 m input

Important Information Attributes

Cross Talk	<= 1 LSB, <= 1 LSB
Temperature Drift	+/- 0.02 %FS/°C, +/- 0.02 %FS/°C
Carbon Footprint Of The Distribution Phase A4	0.0051608642, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0001179877, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	4 kg CO2 eq., 3.86275
Local Publishable Date	2026-01-12
Device Type	PLC System - PLC Component
Traceability	No
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	Yes
Product Kit Identifier	N
Electrical Connection	3 x 1.5 mm² 2 screw terminal blocks with pitch 3.81 mm adjustment for inputs
Insulation	non-insulated between analogue input and internal logic
Product Availability	Non-Stock - Not normally stocked in distribution facility
Product Specific Application	packaging
Repeat Accuracy	+/- 0.5 %FS+/- 0.5 %FS
Sampling Duration	10 ms
Sustainable Packaging	No
Type Of Cable	twisted shielded pairs cable
Database Version	2016-11
Height Nominal	41 mm
Nbr. Of Units In Pkg.	1
Warranty In Months	18
Reference Lifetime In Y	10

Lsb Value	2.44 mV 0...10 V voltage, 4.88 µA 0...20 mA current3.91 µA 4...20 mA current
Non Linearity	+/- 0.01 %FS, +/- 0.01 %FS
Carbon Footprint Of The End Of Life Phase C1 To C4	0 kg CO2 eq., 0.0159796296
Carbon Footprint Of The Manufacturing Phase A1 To A3	2 kg CO2 eq., 1.940308642
Local Data Status	Publishable
Return Indicator	N
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1403017EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1901
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Conversion Time	20 ms
Immunity To Microbreaks	10 ms
Permissible Continuous Overload	13 V voltage40 mA current
Product Or Component Type	analogue input cartridge
Range Of Product	Modicon M221
Returnability	No
Software Version	EIME v5.6.0.1
Total Lifecycle Carbon Footprint	6 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Data Source	extrapolated product
Width Nominal	35 mm
Customs Code	8536904000
Functional Unit Description	to extend I/O communication capacities ( 2 analog inputs/outputs, 2 temperature inputs) of the Modicon M221 and M241 Logic Controllers 100% of the time for 10 years
Energy Consumption On Product Lifetime In Kwh	7.884

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Mercury Free	Yes
Circularity Profile	ENVEOLI1403017EN
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2018-08-01
Type Of Verification For The Pep	Independent external review

Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Carbon Footprint	5.8243171235
Environmental Disclosure	ENVPEP1403017EN
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	Modicon M221C
Pep Code	ENVPEP1403017EN
Pcr Version	PCR-ed3-EN-2015 04 02

General Attributes

Product Or Component Type	analogue input cartridge

Range Of Product	Modicon M221

ETIM

ETIM 8	EC001420
ETIM 10	EC001420

ETIM 9	EC001420

Input Attributes

Analogue Input Type	current 4...20 mA, current 0...20 mAvoltage 0...10 V
Analogue Input Number	2

Input Impedance	<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage<= 250 Ohm current, <= 250 Ohm current, >= 1 MOhm voltage, >= 1 MOhm voltage
Analogue Input Resolution	12 bits
