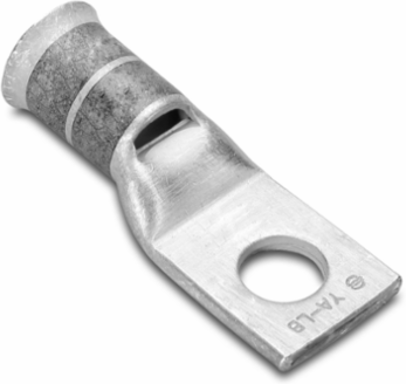

Burndy YA25LB HYLUGTM Standard Length Barrel Terminal, 1 Hole, 1/0 AWG, 35 kV, 2.02 Inch Length
- MPN: YA25LB
- UPC: 781810502426
- PPN: BUR-502255
CAD
$19.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Comp Terminal Flex Cond, 1 Hole/W/InspWindow, 1/0 Str Code, N100 Navy, 1 Flex, 1(225/#24)DLO, 600 V-35 kV, 5/16" Stud, Belled End.
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.87 in |
|---|---|
| Dimension - Hole Size inch | 0.33 in |
| Dimension - L Length Overall mm | 51 mm |
| Dimension - N inch | 0.34 in |
| Dimension - Pad Width inch | 0.75 in |
| Dimension - Z inch | 0.36 in |
| Dimension - D inch | 0.70 in |
|---|---|
| Dimension - Hole Size mm | 8 mm |
| Dimension - Length Overall inch | 2.02 in |
| Dimension - Outside Diameter inch | 0.51 in |
| Dimension - Strip Length inch | 15/16 |
| Physical Attribute - Tongue Angle | Straight |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Industry Standard(s) | UL468A-468B |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| Standards - Industry Standards Met | UL468A-468B |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 1/0 AWG |
|---|---|
| Conductor - Copper Flex G Size | 1/0 AWG |
| Conductor - Copper Flex H Size | 1/0 AWG |
| Conductor - Copper Flex I Size | 1/0 AWG |
| Conductor - Copper Flex K Size | 1/0 AWG |
| Conductor - Copper Flex M Size | 1 AWG |
| Conductor - Material | Copper |
| Conductor - Copper DLO Size Range | 1/0 AWG |
|---|---|
| Conductor - Copper Flex G Size Range | 1/0 AWG |
| Conductor - Copper Flex H Size Range | 1/0 AWG |
| Conductor - Copper Flex I Size Range | 1/0 AWG |
| Conductor - Copper Flex K Size Range | 1/0 AWG |
| Conductor - Copper Flex M Size Range | 1 AWG |
General
| Application | For Flex Conductor |
|---|---|
| Connector Type | Terminal |
| Feature - Barrel Style | Belled |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Trade Name | HYLUG™ |
| UPC | 781810502426 |
| Color Code | Pink |
|---|---|
| Die Index | 12 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 1 |
| Plated | Y |
| Sub Brand | HYLUG |
| Type | Standard Belled Barrel, Tin Plated |
| UPC 12 Digit | 7818105024266 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
