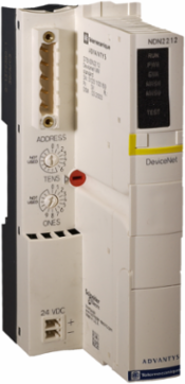

Schneider Electric STBNDN2212 Standard Network Interface Module, 125-500 kbit/s, 64 Slave Modules
- MPN: STBNDN2212
- PPN: SCH-STBNDN2212
CAD
$826.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The Standard Network Interface Module by Schneider Electric is engineered to enhance automation and control systems, facilitating seamless communication within a network. With support for data rates ranging from 125 to 500 kbit/s, this module enables efficient data transmission across various devices in your setup, accommodating up to 64 slave modules for expanded connectivity. Ideal for PLC, HMI, and data acquisition applications, this robust interface is designed to optimize performance and reliability, ensuring your automation processes run smoothly and effectively.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Indonesia, Mexico, United States
Depth70 mm
Communications & Management Attributes
- Communication Service
- Island Bus Object (class ID101), DeviceNet Object (class ID3), Connection Object (class ID5)
Complementary Attributes
- Integrated Connection Type
- DeviceNet Open DeviceNet Vendors Assoc 5-way male 1 twisted pair network)DeviceNet Open DeviceNet Vendors Assoc HE-13 RS232 port), DeviceNet Open DeviceNet Vendors Assoc 8-way female RS232 port)
Maximum Output Impedance0.05 Ohm 100000 kHz
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED green island state (RUN), 1 LED green MNSG, 1 LED green MNSR, 1 LED green power supply (PWR)1 LED red module error (ERR)1 LED yellow test mode
- Certificate Agency
- FM Class 1 Division 2, CSA, UL, ATEX Cat 3G, C-tick
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 4
- Function Option
- Standard
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- true
- Front Installation Possible
- false
- Network Type
- DC
- Power Supply Type
- SELV
- Product Or Component Type
- standard Network Interface Module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- No
- Supporting Protocol For Asi
- false
- Supporting Protocol For Devicenet
- false
- Supporting Protocol For Ethercat
- false
- Supporting Protocol For Interbus
- false
- Supporting Protocol For Lon
- false
- Supporting Protocol For Other Bus Systems
- false
- Supporting Protocol For Profinet Cba
- false
- Supporting Protocol For Profisafe
- false
- Supporting Protocol For Sercos
- false
- Sustainable Packaging
- No
- Certified For Ul Hazardous Location Class I
- false
- Certified For Ul Hazardous Location Class Iii
- false
- Certified For Ul Hazardous Location Division 2
- false
- Potential Separation Present
- true
- Radio Standard Egprs
- false
- Pep Code
- ENVPEP0808003EN
- Width Nominal
- 128.3 mm
- Number Of Server Device(S)
- 64
- Appendant Operation Agent (Ex Ib)
- false
- Certified For Ul Hazardous Location Group B (Hydrogen)
- false
- Certified For Ul Hazardous Location Group D (Propane))
- false
- Certified For Ul Hazardous Location Group F (Carbonaceous Dust)
- false
- Io-link Master Present
- false
- Rack-assembly Possible
- true
- Supporting Protocol For As-interface Safety At Work
- false
- Supporting Protocol For Ethernet/Ip
- false
- Supporting Protocol For Tcp/Ip
- false
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8517620090
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Vibration Resistance+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id4
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electromagnetic Compatibilityimmunity to electromagnetic interference IEC 61131-2
MarkingCE
Number Of Segments1 primary, maximum 6 extensions
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon STB distributed I/O solution
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Canfalse
Supporting Protocol For Devicenet Safetyfalse
Supporting Protocol For Foundation Fieldbusfalse
Supporting Protocol For Knxfalse
Supporting Protocol For Modbusfalse
Supporting Protocol For Profibusfalse
Supporting Protocol For Profinet Iofalse
Supporting Protocol For Safetybus Pfalse
Supporting Protocol For Suconetfalse
Transmission Rate125...500 kbit/s
Certified For Ul Hazardous Location Class Iifalse
Certified For Ul Hazardous Location Division 1false
Dc Supply Voltage24-24 V
System Accessorytrue
Radio Standard Ltefalse
Height Nominal40 mm
Number Of Addressable I/O Module0-32 per island
Appendant Operation Agent (Ex Ia)false
Certified For Ul Hazardous Location Group A (Acetylene)false
Certified For Ul Hazardous Location Group C (Ethylene))false
Certified For Ul Hazardous Location Group E (Metal Dusts)false
Certified For Ul Hazardous Location Group G (Non Conductive Dust)false
Performance Level According To En Iso 13849-1none
Radio Standard Wi-fi 802.11false
Supporting Protocol For Data-highwayfalse
Supporting Protocol For Interbus-safetyfalse
Wall Mounting/Direct Mounting Possiblefalse
Package Weight(Lbs)187.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C with derating factor, -25-70 °C with derating factor, 0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0808003EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP0808003EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity95-95 % 60-60 °C without condensation
General Attributes
- Product Or Component Type
- standard Network Interface Module
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Output Attributes
- Nominal Output Current
- 0.575 A 60-70 °C, 1.2 A
- Output Voltage
- 5.25 V DC +/- 0.21 %)logic bus
Maximum Output Impedance0.05 Ohm 100000 kHz
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 430 mA supply circuit
