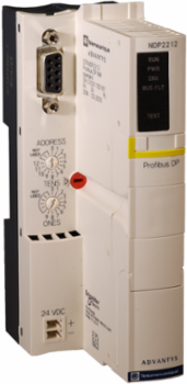

Schneider Electric STBNDP2212 Standard Network Interface Module - Profibus DP, 24V DC, 125 Slaves
- MPN: STBNDP2212
- PPN: SCH-STBNDP2212
CAD
$591.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard network interface module has 125 slaves with 1 primary, maximum 6 extensions segments. It is an interface module with a rated supply voltage of 24V DC, a maximum supply current of 700A, an output voltage of 5.25V DC and an output current of 1.2A. Communication services are diagnostics, read/write DP slave I/O data etc. This product is compatible with most major fieldbus networks. It works with SELV power supply. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 40mm (height). It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by CE, ATEX, UL, C-Tick and CSA.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, United States
Depth70 mm
Communications & Management Attributes
- Communication Service
- diagnostics, read/write DP slave I/O data, configuration control, slave configuration
Complementary Attributes
- Integrated Connection Type
- Profibus DP DIN 19245 part 1 and 3 9-way female RS485 SUB-D 1 twisted shielded pair bus), Profibus DP DIN 19245 part 1 and 3 HE-13 RS232 port), Profibus DP DIN 19245 part 1 and 3 8-way female RS232 port)
Maximum Output Impedance0.05 Ohm 100000 kHz
Important Information Attributes
- Persona Type Ids
- EU, OM8, SI
- Local Signalling
- 1 LED green BUSFLT, 1 LED green island state (RUN), 1 LED green power supply (PWR), 1 LED red module error (ERR), 1 LED yellow test mode
- Certificate Agency
- C-tick, CSA, ATEX Cat 3G, FM Class 1 Division 2, UL
- Local Publishable Date
- 2025-04-05
- Stocking Flag
- Y
- Device Type
- Automation - Distributed inputs/ouputs
- Traceability
- Yes
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2023
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Bearing Track Assembly Possible
- true
- Front Installation Possible
- false
- Network Type
- AC/DC
- Power Supply Type
- SELV
- Product Or Component Type
- standard Network Interface Module
- Radio Standard Gprs
- false
- Radio Standard Umts
- false
- Returnability
- No
- Structure Type
- industrial field bus DP V.0
- Supporting Protocol For Can
- false
- Supporting Protocol For Devicenet Safety
- false
- Supporting Protocol For Foundation Fieldbus
- false
- Supporting Protocol For Knx
- false
- Supporting Protocol For Modbus
- false
- Supporting Protocol For Profibus
- false
- Supporting Protocol For Profinet Io
- false
- Supporting Protocol For Safetybus P
- false
- Supporting Protocol For Suconet
- false
- Transmission Rate
- 12 Mbit/s
- Certified For Ul Hazardous Location Class Ii
- false
- Certified For Ul Hazardous Location Division 1
- false
- Dc Supply Voltage
- 24-24 V
- System Accessory
- true
- Radio Standard Lte
- false
- Height Nominal
- 40 mm
- Number Of Addressable I/O Module
- 0-32 per island
- Appendant Operation Agent (Ex Ia)
- false
- Certified For Ul Hazardous Location Group A (Acetylene)
- false
- Certified For Ul Hazardous Location Group C (Ethylene))
- false
- Certified For Ul Hazardous Location Group E (Metal Dusts)
- false
- Certified For Ul Hazardous Location Group G (Non Conductive Dust)
- false
- Performance Level According To En Iso 13849-1
- none
- Radio Standard Wi-fi 802.11
- false
- Supporting Protocol For Data-highway
- false
- Supporting Protocol For Interbus-safety
- false
- Wall Mounting/Direct Mounting Possible
- false
- Package Weight(Lbs)
- 177.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, OEM - Control Panelbuilder, System Integrator
Vibration Resistance+/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)3 gn 58-150 Hz) on 35 mm DIN rail, 5 gn 58-150 Hz) on 35 mm DIN rail, +/-0.35 mm 10-58 Hz), +/-0.35 mm 10-58 Hz)
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee Product Category5
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Tier Id2
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Electromagnetic Compatibilityimmunity to electromagnetic interference IEC 61131-2
MarkingCE
Number Of Segments1 primary, maximum 6 extensions
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Radio Standard Bluetoothfalse
Radio Standard Gsmfalse
Range Of ProductModicon STB distributed I/O solution
Shock Resistance30 gn 11 msIEC 88 reference 2-27
Supporting Protocol For Asifalse
Supporting Protocol For Devicenetfalse
Supporting Protocol For Ethercatfalse
Supporting Protocol For Interbusfalse
Supporting Protocol For Lonfalse
Supporting Protocol For Other Bus Systemsfalse
Supporting Protocol For Profinet Cbafalse
Supporting Protocol For Profisafefalse
Supporting Protocol For Sercosfalse
Sustainable PackagingNo
Certified For Ul Hazardous Location Class Ifalse
Certified For Ul Hazardous Location Class Iiifalse
Certified For Ul Hazardous Location Division 2false
Potential Separation Presenttrue
Radio Standard Egprsfalse
Pep CodeENVPEP0808003EN
Width Nominal128.3 mm
Number Of Server Device(S)125
Appendant Operation Agent (Ex Ib)false
Certified For Ul Hazardous Location Group B (Hydrogen)false
Certified For Ul Hazardous Location Group D (Propane))false
Certified For Ul Hazardous Location Group F (Carbonaceous Dust)false
Io-link Master Presentfalse
Rack-assembly Possibletrue
Supporting Protocol For As-interface Safety At Workfalse
Supporting Protocol For Ethernet/Ipfalse
Supporting Protocol For Tcp/Ipfalse
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C with derating factor, -25-70 °C with derating factor0-60 °C without derating, -25-70 °C with derating factor, -25-70 °C with derating factor
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP0808003EN
- Ip Degree Of Protection
- IP20
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP0808003EN
Take BackNo
China Rohs RegulationX
Ambient Air Temperature For Storage-40-85 °C-40-85 °C
Eu Rohs DirectiveCompliant By Exemption
Operating Altitude<= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
Packaging Without Single Use PlasticNo
Relative Humidity95-95 % 60-60 °C without condensation
General Attributes
- Product Or Component Type
- standard Network Interface Module
Range Of ProductModicon STB distributed I/O solution
ETIM
- ETIM 8
- EC001604
ETIM 9EC001604
Output Attributes
- Nominal Output Current
- 0.575 A 60-70 °C, 1.2 A
- Output Voltage
- 5.25 V DC +/- 0.21 %)logic bus
Maximum Output Impedance0.05 Ohm 100000 kHz
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Input Attributes
- Input Current
- 430 mA supply circuit
