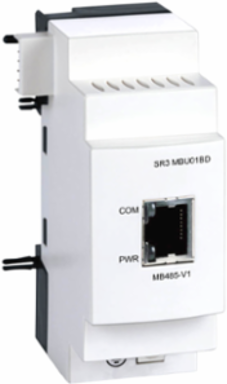

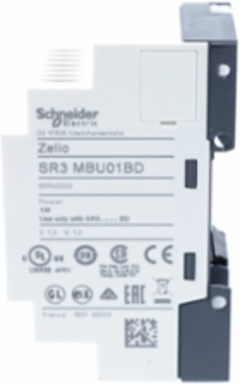

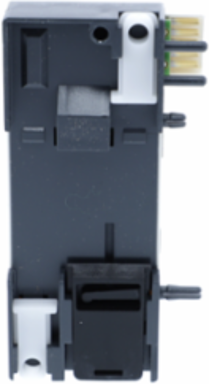

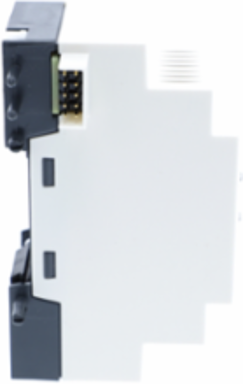

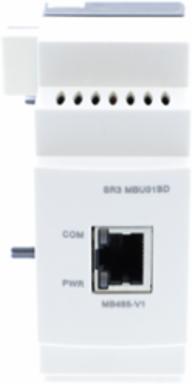

Telemecanique Sensors SR3MBU01BD Modbus Slave Communication Module, 24V DC, RJ45, IP20/IP40
- MPN: SR3MBU01BD
- PPN: SCH-SR3MBU01BD
CAD
$190.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
This product is part of the Zelio Logic range, an offer of smart relays for simple automation systems from 10 to 40 I/Os. The Modbus slave communication module is suitable for smart relays. It is a communication module with 2 or 4 wires wiring mode. It is furnished with RJ45 connector for electrical connection. It is an IP20 and IP40 rated product. It weighs 0.11kg. This product is certified by GOST, C-Tick, UL, GL and CSA. It meets EN/IEC 60068-2-27 Ea, EN/IEC 61000-4-3, EN/IEC 61000-4-4 level 3, EN/IEC 61000-4-2 level 3, EN/IEC 61000-4-5 and EN/IEC 60068-2-6 Fc standards. This product is compatible with all modules with 24V supply SR3 BxxxBD. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Zelio Logic
- Wiring Mode
- 2 or 4 wires
Product Or Component TypeModbus slave communication module
Complementary
- Programming Language
- FBD || ladder
- Transmission Frame
- RTU || ASCII
- Communication Port Support
- RS485
- Communication Port Protocol
- Modbus
- Number Of Addresses
- 1-247
- Transmission Rate
- 1200 bauds || 9600 bauds || 38400 bauds || 19200 bauds || 57600 bauds || 28800 bauds || 2400 bauds || 4800 bauds
- Parity
- no || odd || even
Electrical Connection1 connector RJ45
Net Weight0.11 kg
Connections - Terminalsscrew terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) semi-solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) solid || screw terminals, 2 x 0.25...2 x 1.5 mm² AWG 23...AWG 16) solid || screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end || screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
Tightening Torque0.5 N.m
Local Signallingcommunication 1 LED || power ON 1 LED
Product Compatibilityall modules with 24 V supply SR3 B...BD
Environment
- Product Certifications
- GOST || CSA || GL || C-Tick || UL
- Disturbance Radiated/Conducted
- class B EN 55022-11 group 1
- Environmental Characteristic
- EMC directive IEC 61000-6-2 || EMC directive IEC 61000-6-3 || EMC directive IEC 61000-6-4 || EMC directive IEC 61131-2 zone B || low voltage directive IEC 61131-2
- Pollution Degree
- 2 IEC 61131-2
- Relative Humidity
- 95-95 % without condensation or dripping water
- Operating Altitude
- 2000 m
StandardsIEC 60068-2-27 Ea || IEC 61000-4-3 || IEC 61000-4-4 level 3 || IEC 61000-4-2 level 3 || IEC 61000-4-5 || IEC 60068-2-6 Fc
Ambient Air Temperature For Operation-20-40 °C IEC 60068-2-1 and IEC 60068-2-2 || -20-55 °C IEC 60068-2-1 and IEC 60068-2-2
Ip Degree Of ProtectionIP20 IEC 60529 terminal block) || IP40 IEC 60529 front panel)
Ambient Air Temperature For Storage-40-70 °C
Maximum Altitude Transport3048 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060406EN
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI0604006EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
