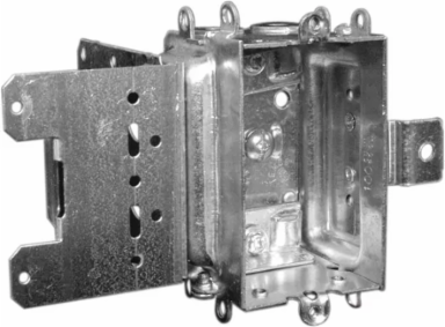

Hubbell 3102MSBU Gangable Steel Stud Device Box, 2 Inch Deep, 12 Cu. In., for 1-5/8 & 2-3/8 Inch Studs
- MPN: 3102MSBU
- UPC: 626463000878
- PPN: HBL-3102MSBU
CAD
$5.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Gangable Steel Stud Device Box, 2 Inch Deep, 12 Cu. In., for 1-5/8 & 2-3/8 Inch Studs
Features
- Outfitted with a specialized MSBS mounting bracket configured for standard 1-5/8 in and 2-3/8 in steel stud sizes, this electrical box fastens rigidly with zero physical flexing. The precision 0.4375 in bracket setback ensures your finished drywall mounts perfectly flush with the front facing of the box, mitigating installation rework and alignment errors for commercial electricians.
- Featuring side walls that can be completely detached and linked to matching units, this modular 1-gang device box offers the versatility to construct custom 2-gang, 3-gang, or larger layouts on the fly. This flexible layout dramatically cuts down on the specific box types you need to stock on a commercial job site, letting you adapt seamlessly to sudden design-build blueprint revisions.
- Equipped with built-in universal cable clamps and targeted cable pryouts on the ends, this interior box handles both NMD90 (Loomex) and AC90 (BX) wiring systems smoothly. This dual-compatibility design creates an airtight, code-compliant mechanical grip on your conductors without requiring the addition of external, separate box connectors, speeding up your rough-in workflows on mixed-material job sites.
- This 12-cubic-inch box features an integrated, raised grounding boss pre-tapped with a heavy-duty grounding screw right in the back panel. By isolating the grounding point away from incoming conductor paths and eliminating the manual step of chasing down loose ground screws, it slashes installation time across high-density commercial fit-outs while simplifying validation for electrical inspectors.
- Manufactured from premium, heavy-gauge galvanized steel, this durable box delivers permanent fire-resistant containment and structural rigidity within steel-stud framing. It provides an robust physical barrier that fully complies with strict Canadian Electrical Code (CEC) standards via official CSA certification, protecting internal terminations from environmental dust and physical shifting for the lifetime of the facility.
Documentation & Downloads
Specifications
Additional
- Volume
- 12 Cu. In.
- Stud Size
- 1-5/8 in, 2-3/8 in
- Raised Ground
- Yes
- Bracket Type
- MSB
- Cable Entry
- Universal Cable Clamps
- Certified Listed
- CSA
Depth3 in
Number of Gangs1-Gang
MaterialSteel
Bracket Setback0.4375 in
Ends Cable4
