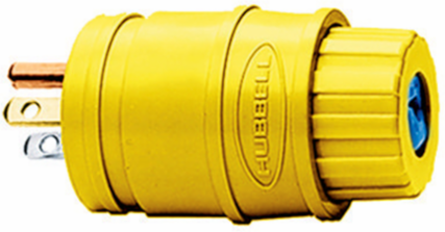

Hubbell Wiring Device-Kellems HBL14W47 Industrial/Commercial Grade Male Plug, 15A 125V, 2-Pole 3-Wire, Yellow
- MPN: HBL14W47
- UPC: 783585013008
- PPN: HBL-HBL14W47
- UNSPSC: 39121402
CAD
$50.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Plug, Elasto-Grip Water Tight, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
Features
- Thermoplastic elastomer housing
- Integral weatherproofing shroud seals connection between plug and connector
- Nylon compression nut keeps water and dust from getting into the body around the cord
Documentation & Downloads
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Dimensions
- 2.65 in x 1.55 in x 2.65 in
- Horsepower - Maximum
- 0.50
- Length
- 2.65 in
- Amperage Rating
- 15 A
- Color
- Jaune
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Standard
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.55 in
- Nema Rating
- 5-15P
- Number Of Wires
- 3-Wire
- Style
- Standard
- Description - Invoice
- ELASTOGRIP W/T PLUG, 15A 125V, 5-15P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A04A010
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.250 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.430 lb.
- Pallet Height
- 47.700 in
- Pallet Weight
- 1032.750 lb.
- NAICS Code
- 335931A102
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating15 A
Height2.65 in
Industry Standard(s)CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
PerformanceElectrical:Current Interrupting Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical:Product Identification: Ratings are a permanent part of the device;Terminal Accommodation:#18-#12 AWG. Stranded copper wire only.;Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental:Flammability: UL 94 V-2;IP Suitability: IP55;Operating Temperatures: Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationIndustrial/Commercial Grade
NEMA Rating5-15P
Number of Wires3-Wire
Size2.65 in x 1.55 in x 2.65 in
TypePlug
Wire Size#18 AWG to #12 AWG
Weight0.2 lb.
Dielectric StrengthWithstands 2,000V minimum
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number14W47
Current Rating15 A
SeriesElastogrip
BOX SIZE3.500x9.900x4.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585013008
Case - Total Units50 EA
Pallet - GTIN - Package70783585013007
Pallet Length48.000 in
Pallet Width40.000 in
