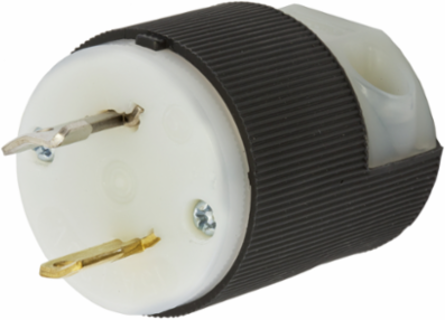

Hubbell Wiring Device-Kellems HBL7545C Midget Twist-Lock Male Plug 15A 125V 2-Pole 2-Wire
- MPN: HBL7545C
- UPC: 783585178509
- PPN: HBL-HBL7545C
- UNSPSC: 39121402
CAD
$28.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Midget Twist-Lock®, Industrial, Male Plug, 15A 125V, 2-Pole 2-Wire Non Grounding, L1-15P, Screw Terminal, Black and White.
Features
- Ribbed nylon housing provides secure, impact and chemical resistant grip
- Superior cord grip design protects terminations from excess strain
- Integral VARI-SIZE insert accomodates a wide range of cord diameters (.22 to .72 in.)
- Weather protective covering
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL7545C AutoCAD Drawing
- Current / Amperage Rating
- 15 A
- Height
- 1.52 in
- Industry Standard(s)
- Certified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Color
- Black, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Weather protective covering
- Type
- Plugs
- Wire Size
- #14 AWG to #12 AWG
- Weight
- 0.15 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG PLUG, 15A 125V, L1-15P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Cord Range
- 0.230"-0.720"(5.8-18.3)
- Cord Diameter
- 0.230-0.720 in
- Material
- Composite
- BOX SIZE
- 3.600x9.900x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585178509
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585178508
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions1.96 in x 1.52 in x 1.52 in
Horsepower - Maximum0.5
Length1.96 in
Standards - RoHS Compliance StatusCM
ApplicationIndustrial/Commercial
Cord TypeAll Listed Portables
NEMA RatingL1-15P
Number of Wires3-Wire
Size1.96 in x 1.52 in x 1.52 in
StandardCertified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
Voltage Rating125 V
Voltage Rating Description125 V
Width1.52 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL1-15P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7545C
Cable Range0.230 - 0.720 in
Material - Mounting HardwareCord Mounted
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight11.504 lb.
Lowest Level UOMEach
Pallet Height38.800 in
Pallet Weight595.800 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
