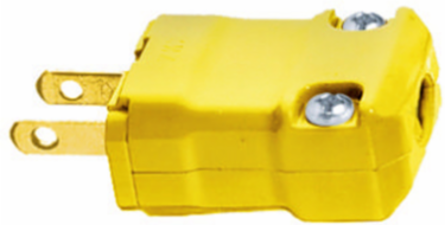

Hubbell Wiring Device-Kellems HBL5866VY Valise Series Male Plug, 15A 125V, 2-Pole, Non-Grounding, Yellow
- MPN: HBL5866VY
- UPC: 783585013077
- PPN: HBL-HBL5866VY
- UNSPSC: 39121402
CAD
$26.71
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 2-Wire Non- Grounding, 15A 125V, 1-15P , Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Two captive multiple drive assembly screws
- Powerful cord grips prevent conductor slippage and strain
- Polarized blades
- Polarized
Documentation & Downloads
Specifications
Key Specifications
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 1.68 in x 1.25 in x 0.88 in |
| Horsepower - Maximum | 0.5 |
| Length | 1.68 in |
| Standards - RoHS Compliance Status | CM |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Size | 1.68 in x 1.25 in x 0.88 in |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Voltage Rating | 125 V |
| Wire Size | #18 AWG to #14 AWG |
| Weight | 0.1 lb. |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 5866VY |
| Current Rating | 15 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 4.338 lb. |
| Pallet Height | 46.000 in |
| Pallet Weight | 630.000 lb. |
| NAICS Code | 335931A102 |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
|---|---|
| Current / Amperage Rating | 15 A |
| Height | 0.88 in |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Molded Rating on Device Face;Mechanical - Terminal Accommodation - #18-#14 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 15 A |
| NEMA Rating | 1-15P |
| Number of Wires | 2-Wire |
| Special Features | Polarized |
| Type | Plug |
| Wattage | 1875 W |
| Voltage Rating Description | 125 V |
| Width | 1.25 in |
| Nema Rating | 1-15P |
| Number Of Wires | 2-Wire |
| Style | Non-Grounding |
| Description - Invoice | VALISE PLUG, 15A 125V, 1-15P, YL, POLAR |
| Harmonization Code | 8536699902 |
| MSDS Flag | No |
| Sub Class Code | A04A050 |
| Series | Valise® |
| BOX SIZE | 3.200x8.400x3.700 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585013077 |
| Case - Total Units | 50 EA |
| Pallet - GTIN - Package | 70783585013076 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
