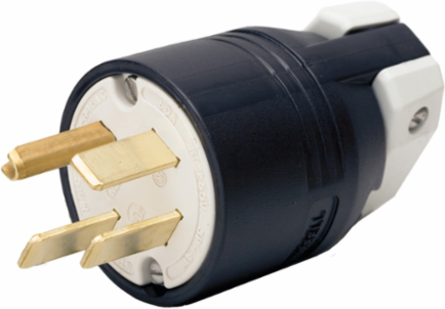

Hubbell Wiring Device-Kellems HBL8461C Heavy Duty 60A 3-Pole 4-Wire Grounding Male Plug, 250V AC, Black
- MPN: HBL8461C
- UPC: 783585015194
- PPN: HBL-HBL8461C
- UNSPSC: 39121402
CAD
$266.20
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Male Plug, Heavy Duty, Industrial/Commercia lGrade, Straight, 3-Pole 4-Wire Grounding, 60A 3 Phase 250V AC, 15-60P, Black, Single Pack.
Features
- Catalog number, ratings and certifications molded in face
- Gripping ribs provide secure gripping area
- Supertough nylon housing
Documentation & Downloads
Specifications
Key Specifications
| Engineering Drawing 1 Display Text | HBL8461C AutoCAD Drawing |
|---|---|
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Current / Amperage Rating | 60 A |
| Height | 2.88 in |
| Industry Standard(s) | CSA Certified;UL Listed File E1706 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Color | Black |
| Number of Poles | 3-Pole |
| Size | 4.13 in x 2.88 in x 2.88 in |
| Type | Plug |
| Wire Size | #12 AWG to #4 AWG |
| Weight | 0.85 lb. |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 3-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 8461 |
| Cord Range | 0.625"-1.310" |
| Material | Nylon |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 4.800 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 5 EA |
| Pallet - GTIN - Package | 70783585015193 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
|---|---|
| Country of Origin | United States |
| Dimensions | 4.13 in x 2.88 in x 2.88 in |
| Horsepower - Maximum | 10 |
| Length | 4.13 in |
| Amperage Rating | 60 A |
| NEMA Rating | 15-60P |
| Number of Wires | 4-Wire |
| Standard | CSA Certified;UL Listed File E1706 |
| Voltage Rating | 250 VAC |
| Voltage Rating Description | 250 VAC |
| Width | 2.88 in |
| Nema Rating | 15-60P |
| Number Of Wires | 4-Wire |
| Style | Grounding |
| Description - Invoice | PLUG, 3P4W, 60A 3PH 250V, 15-60P,BK |
| Harmonization Code | 8536699902 |
| MSDS Flag | No |
| Sub Class Code | A04A080 |
| Current Rating | 60 A |
| Series | Extra Heavy Duty |
| BOX SIZE | 5.200x11.800x9.100 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585015194 |
| Case Weight | 3.364 lb. |
| Pallet Height | 46.800 in |
| Pallet Weight | 742.050 lb. |
| NAICS Code | 335931A102 |
