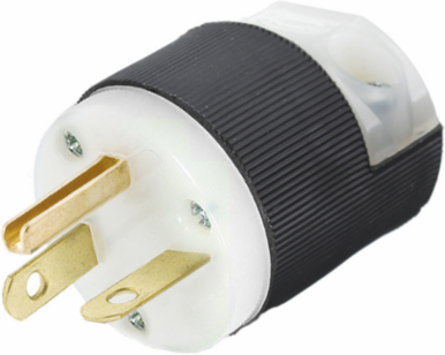

Hubbell Wiring Device-Kellems HBL5466C Insulgrip Male Plug, Heavy Duty, 20A 250V, 2-Pole 3-Wire, Black & White
- MPN: HBL5466C
- UPC: 783585174709
- PPN: HBL-HBL5466C
- UNSPSC: 39121402
CAD
$69.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 250V, 6-20P, Black and White, Single Pack.
Features
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Horsepower
- 2 HP
- Number of Wires
- 3-Wire
- Width
- 1.53 in
- Weight
- 0.15 lb.
- Blade Material
- .060 in Brass
- Terminal Clamp Material
- Nickel plated steel
- Housing Material
- Nylon
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
- Dielectric Strength
- Withstands 2,000 V minimum
- Color
- Black, White
- Type
- Plug
Voltage250 V
Number of Poles2-Pole
Length1.97 in
Size1.97 in x 1.53 in x 1.53 in
MaterialRibbed Nylon
Terminal Screws#8-32 Brass
Assembly ScrewsNickel plated steel
Terminal Retainer MaterialClear Polycarbonate
NEMA Rating6-20P
Operating Temperature-40°C to 75°C continuous
Country of OriginUS
