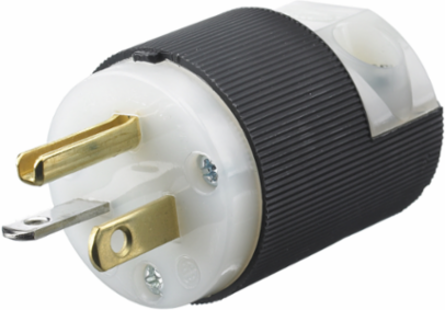

Hubbell Wiring Device-Kellems HBL5366C Insulgrip Heavy Duty Male Plug 20A 125V 2-Pole 3-Wire Grounding
Hubbell Wiring Device-Kellems HBL5366C Insulgrip Heavy Duty Male Plug 20A 125V 2-Pole 3-Wire Grounding
- MPN: HBL5366C
- UPC: 783585173955
- PPN: HBL-HBL5366C
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$59.62/ EA
Description
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 20A 125V, 5-20P, Black and White, Single Pack.
Features
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL5366C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Insulgrip® Straight Blade and Twist-Lock® Devices
- Country of Origin
- United States
- Dimensions
- 1.52 in x 1.52 in x 1.96 in
- Horsepower - Maximum
- 1.00
- Length
- 1.52 in
- Standards - RoHS Compliance Status
- CM
- Application
- Industrial/Commercial Grade
- NEMA Rating
- 5-20P
- Number of Wires
- 3-Wire
- Size
- 1.52 in x 1.52 in x 1.96 in
- Type
- Plug
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.15 lb.
- Dielectric Strength
- Withstands 2,000V minimum
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 5366C
- Current Rating
- 20 A
- Series
- Insulgrip®
- BOX SIZE
- 3.500x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585173955
- Case - Total Units
- 100 EA
- Pallet Height
- 46.000 in
- Pallet Weight
- 711.760 lb.
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextEntertainment Product Solution Guide
Current / Amperage Rating20 A
Height1.96 in
Industry Standard(s)CSA Certified to C22.2 No. 42 File 280;Fed. Spec. W-C596G;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating20 A
ColorNoir, blanc
Number of Poles2-Pole
PhaseSingle Phase
StandardCSA Certified to C22.2 No. 42 File 280;Fed. Spec. W-C596G;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
Voltage Rating125 VAC
Voltage Rating Description125 V
Width1.52 in
Nema Rating5-20P
Number Of Wires3-Wire
StyleStandard
Description - InvoicePLUG, 20A 125V, 5-20P, B/W
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA04A010
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.600 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight18.650 lb.
Pallet Length48.000 in
Pallet Width40.000 in
