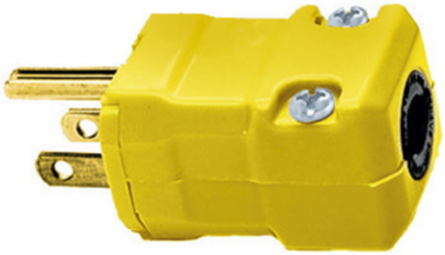

Hubbell Wiring Device-Kellems HBL5965VY Valise Plug, 2-Pole 3-Wire Grounding, 15A 125V, 1.88 x 2.55 Inch, Yellow
- MPN: HBL5965VY
- UPC: 783585013091
- PPN: HBL-HBL5965VY
- UNSPSC: 39121402
CAD
$12.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
Documentation & Downloads
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Operating Temperature
- -40°C to 75°C continuous
- Weight
- 0.1 lb
- Connectivity
- Screw Terminals
- NEMA Rating
- 5-15P
- Grounding
- Yes
Voltage125 VAC
Number of Wires3-Wire
Dielectric StrengthWithstands 2,000 V minimum
Dimensions1.88 in x 1.88 in x 2.55 in
Wire Size#18 AWG to #12 AWG
MaterialPolycarbonate
ComplianceUL Listed to UL498; CSA Certified to C22.2 No 42; RoHS Compliant
Country of OriginUS
