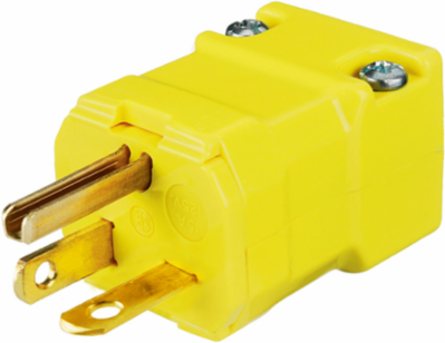

Hubbell Wiring Device-Kellems HBL5464VY Valise Series 2-Pole 3-Wire Grounding Plug, 20A 250V, Yellow
- MPN: HBL5464VY
- UPC: 783585013183
- PPN: HBL-HBL5464VY
- UNSPSC: 39121402
CAD
$54.83
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 20A 250V, 6-20P, Yellow, Single Pack.
Features
- Hinged one piece body design for easy assembly
- Powerful, offsetting cord grips clamp on individual conductors
- Assembly screws are captive and will not fall out while wiring
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 1.88 in x 1.5 in x 1.13 in |
| Horsepower - Maximum | 2 |
| Length | 1.88 in |
| Standards - RoHS Compliance Status | CM |
| Color | Yellow |
| Number of Poles | 2-Pole |
| Size | 1.88 in x 1.5 in x 1.13 in |
| Type | Plug |
| Wattage | 5000 W |
| Voltage Rating Description | 250 V |
| Width | 1.5 in |
| General Literature Asset 2 Display Text | PULP & PAPER SOLUTIONS |
| Nema Rating | 6-20P |
| Number Of Wires | 3-Wire |
| Style | Standard |
| Description - Invoice | VALISE PLUG, 20A 250V, 6-20P, BK |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Sub Class Code | A04A050 |
| Series | Valise® |
| BOX SIZE | 3.300x8.400x3.600 (in) |
| Carton - Number of Sub Packs | 10 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585013183 |
| Case - Total Units | 50 EA |
| Pallet - GTIN - Package | 70783585013182 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 1.13 in |
| Industry Standard(s) | CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #18-#12 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 20 A |
| NEMA Rating | 6-20P |
| Number of Wires | 3-Wire |
| Standard | CSA Certified to C22.2 No. 42 File 280C;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706 |
| Voltage Rating | 250 V |
| Wire Size | #18 AWG to #12 AWG |
| Weight | 0.15 lb. |
| General Literature Asset 1 Display Text | Pulp & Paper Solutions |
| Dielectric Strength | Withstands 2,000V minimum |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 5464VY;5464VYCN;HBL5464VYCN;HBL5576EY |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 1.500 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Case Weight | 6.950 lb. |
| Pallet Height | 46.000 in |
| Pallet Weight | 834.000 lb. |
| NAICS Code | 335931A102 |
