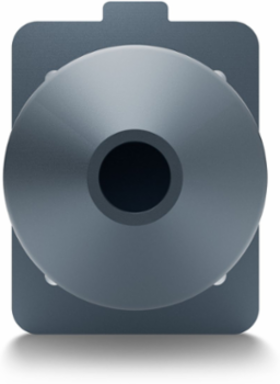

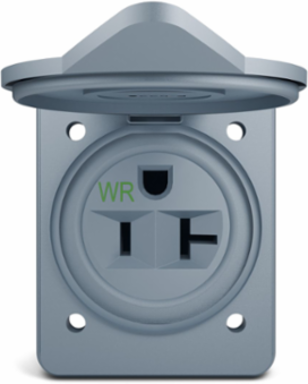

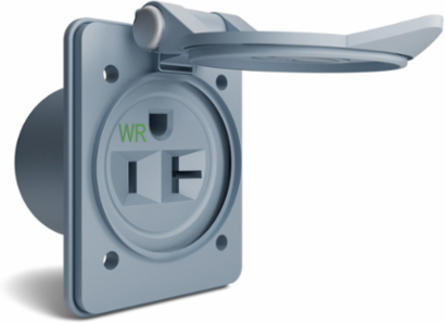

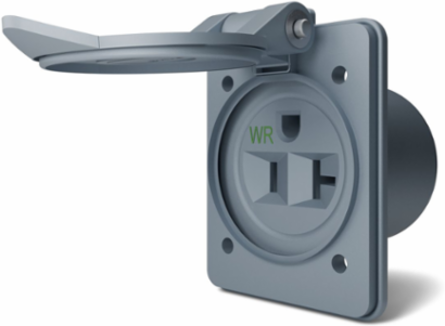

Hubbell Wiring Device-Kellems HBL61CM65 Marine Flanged Outlet 20A 125V 2-Pole 3-Wire Grounding Gray
- MPN: HBL61CM65
- UPC: 783585808673
- PPN: HBL-HBL61CM65
- UNSPSC: 39121406
CAD
$103.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Straight Blade Devices, Outlet, Flanged, Marine, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Gray, Single Pack.
Features
- Weatherproof flip lid
- Weatherproof boot covers terminals
- Multiple drive screws
- Nickel plated brass contacts
- Corrosion Resistant
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Dimensions | 2.68 in x 2.25 in x 2.68 in |
| Horsepower - Maximum | 0.50 |
| Length | 2.68 in |
| Standards - RoHS Compliance Status | CM |
| Application | Heavy Duty |
| Dielectric Strength | Withstands 2,000V minimum |
| NEMA Rating | 5-20R |
| Number of Wires | 3-Wire |
| Size | 2.68 in x 2.25 in x 2.68 in |
| Standard | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186;WR Rating |
| Voltage Rating | 125 VAC |
| Wire Size | #14 AWG to #10 AWG |
| Weight | 0.25 lb. |
| General Literature Asset 1 Display Text | Hubbell Marine Full Line Catalog |
| Display Size | Standard Sized Product |
| Number Of Poles | 2-Pole |
| Operating Temperature | Maximum continuous 75°C and minimum -40°C without Impact |
| Class Code | A04 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Replaced Catalog Number | 61CM65 |
| Material - Mounting Hardware | Screw Mounting |
| Series | Heavy Duty Specification Grade |
| BOX SIZE | 9.300x16.900x9.800 (in) |
| Carton - Number of Sub Packs | 5 |
| Carton - SCC-14 Next Lower Level Sub Pack | 783585808673 |
| Case Weight | 9.184 lb. |
| Lowest Level UOM | Each |
| Pallet Height | 46.500 in |
| Pallet Weight | 214.500 lb. |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 2.68 in |
| Industry Standard(s) | Certified to CSA, C22.2, No. 42;NEMA® WD-6 Compliant;UL Listed, File E2186;WR Rating |
| Performance | Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V-2;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA |
| Amperage Rating | 20 A |
| Color | Yellow |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Number of Poles | 2-Pole |
| Phase | Single Phase |
| Special Features | Corrosion Resistant |
| Type | Flanged Receptacle |
| Wattage | 2500 W |
| Voltage Rating Description | 125 V |
| Width | 2.25 in |
| Connectivity | Side Wired Only |
| Nema Rating | 5-20R |
| Number Of Wires | 3-Wire |
| Style | Weather Proof and Corrosion Resistant |
| Description - Invoice | MARINE HULL OUTLET, 20A 125V, 5-20R, GY |
| Harmonization Code | 8536694020 |
| MSDS Flag | No |
| Sub Class Code | A04A010 |
| Current Rating | 20 A |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 2.750 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 10 EA |
| Each - Pack Description | Each |
| Pallet - GTIN - Package | 70783585808672 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
