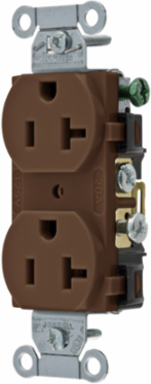

Hubbell Wiring Device-Kellems CR20 Commercial Grade Duplex Receptacle, 20A 125V, Brown
- MPN: CR20
- UPC: 783585900100
- PPN: HBL-CR20
CAD
$3.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown, Single Pack.
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Additional
- Voltage
- 125 V
- Wattage
- 2500 W
- Number Of Poles
- 2-Pole
- Phase
- Single Phase
- Width
- 0.83 in
- Dimensions
- 1.32 in x 0.83 in x 3.28 in
- Material
- Nylon Face and Base, Brass Power Contacts, Galvanized Steel Mounting Strap and Screws, Stainless Steel Self-grounding Staple
- Contact Type
- Triple wipe
- Terminal Type
- Fork terminal capable
- Dielectric Strength
- Withstands 2,000 V minimum
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 5-20R
- Flammability
- UL 94 V-2
- Style
- Smooth Face
- Application
- Commercial Specification Grade
Amperage20 A
Horsepower - Maximum1
Number Of Wires3-Wire Grounding
Length1.32 in
Height3.28 in
Weight0.2 lb
ConnectivitySide Wired
Terminal Accommodation#12 to #10 AWG copper stranded or solid conductor
Material - Mounting HardwareScrew Mounting
Operating Temperature Range-400C to 750C
ColorBrown
ComplianceUL Listed, CSA Certified, NEMA WD-6
TypeStandard Duplex
SeriesCommercial Specification Grade
OEM Brand NameHubbell Wiring Device-Kellems
