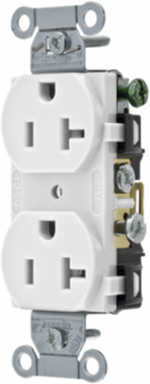

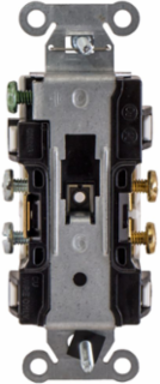

Hubbell CR20WHI Commercial Grade Duplex Receptacle 20A 125V White
- MPN: CR20WHI
- UPC: 783585900179
- PPN: HBL-CR20WHI
CAD
$3.00
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Documentation & Downloads
Specifications
Additional
| Amperage | 20 A |
|---|---|
| Poles | 2-Pole |
| Horsepower | 1 HP |
| Dimensions | 1.32 in x 0.83 in x 3.28 in |
| Material | Nylon (Face, Base) |
| Material - Power Contacts and Screws | Brass (Power Contacts), Plated Steel (Terminal Screws) |
| NEMA Rating | 5-20R |
| Current Interrupting | Certified for full rated current |
| Operating Temperature Range | -40 C to 75 C (maximum continuous, without impact) |
| Compliance | UL Listed (UL498), CSA Certified (C22.2 No. 42), NEMA WD-6, Fed. Spec. W-C-596 |
| Connectivity | Side Wired |
| Item Type | Traditional Duplex |
| Series | Commercial Specification Grade |
| Voltage | 125 V |
|---|---|
| Wires | 3-Wire |
| Wattage | 2500 W |
| Weight | 0.2 lb |
| Material - Mounting Hardware | Screw Mounting (Galvanized Steel Mounting Strap, Mounting Screws, Stainless Steel Self-grounding Staple) |
| Color | White |
| Dielectric Voltage Withstand | 2000 V minimum |
| Terminal Accommodation | #12-#10 AWG copper stranded or solid conductor |
| Environmental Conditions | Indoor Dry Unless Protected By Additional Means |
| Phase | Single Phase |
| Style | Smooth Face |
| Application | Commercial Specification Grade |
| Terminal Identification | UL 498 and CSA |
