Documentation & Downloads

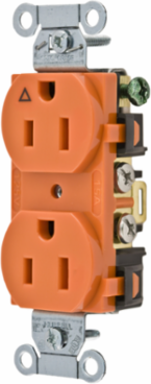

Hubbell Wiring Device-Kellems IG5252 Isolated Ground Receptacle, 15A 125V, 2-Pole 3-Wire, Orange
- MPN: IG5252
- UPC: 783585146706
- PPN: HBL-IG5252
CAD
$25.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Orange, Single Pack.
Features
- Triangle marking on face indicates isolated ground
- Slender/compact design
- Smooth Face
Documentation & Downloads
Specifications
Dimensions
- Display Size
- Standard Sized Product
- Length
- 3.28 in
Height1.07 in
Width1.57 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Hubbell-Pro Heavy Duty Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Hubbell-PRO
- Type
- Isolated Ground
ColorOrange
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact °C
StyleSmooth Face
UPC783585146706
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 1875 W
ConnectivityBack and Side Wired Screw Terminals
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
