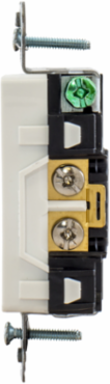

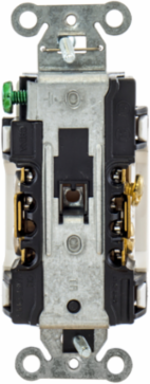

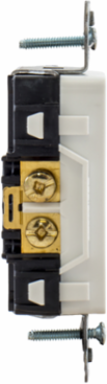

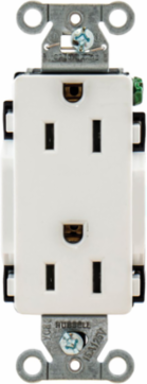

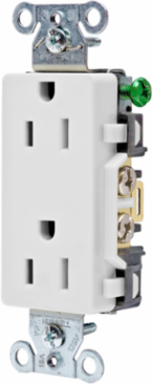

Hubbell Wiring Device-Kellems DR15WHI Decorator Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, White
Hubbell Wiring Device-Kellems DR15WHI Decorator Duplex Receptacle, 15A 125V, 2-Pole 3-Wire, White
- MPN: DR15WHI
- UPC: 783585127828
- PPN: HBL-DR15WHI
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$5.69/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White, Single Pack.
Features
- Aesthetic Style Line® decorator design
- Smooth face
- Triple wipe contacts
Specifications
- Amperage
- 15 A
- Wattage
- 1875 W
- Number of Wires
- 3-Wire Grounding
- Dielectric Voltage
- 2000 V minimum
- Phase
- Single Phase
- Width
- 1.06 in
- Dimensions
- 1.29 in x 1.06 in x 3.28 in
- Connectivity
- Back and Side Wired
- Mounting Hardware Material
- Screw Mounting
- Base Material
- Nylon
- Ground Contacts Material
- Brass
- Terminal Screws Material
- Plated steel
- Self-grounding Staple Material
- Stainless steel
- Terminal Accommodation
- #14-#10 AWG copper stranded or solid conductor
- Item Type
- Decorator Duplex Receptacle
- Color
- White
- Style
- Style Line Decorator
Voltage125 V
Number of Poles2-Pole
Horsepower Maximum0.5 HP
Operating Temperature Range-40°C to 75°C
Length1.29 in
Height3.28 in
Weight0.2 lb
MaterialNylon
Face MaterialNylon
Power Contacts Material.030 in Brass
Wire Clamp Material.062 in Nickel plated steel
Mounting Strap Material.040 in Galvanized steel
Mounting Screws MaterialGalvanized steel
ComplianceUL Listed, CSA Certified, NEMA 5-15R, Fed. Spec. W-C-596
Environmental ConditionsIndoor Dry Unless Protected
SeriesCommercial Specification Grade
